Our ground-breaking DialDim™ Lighting Controller features a multicolor halo dimming switch that allows you to independently turn on/off and dim two sets of auxiliary lights from a single consolidated wiring harness.

The LED halo switch displays your exact settings and allows for effortless dimming on the fly. The blue halo controls light set one and the green halo controls light set two; simply double click to switch between the two circuits. The controller also features high beam, turn signal, and horn inputs to unlock intelligent flash features that can cancel your aux lights with your turn signal, flash your aux lights as a turn signal, or strobe your lights when you sound your horn.

Specifications:

• Two fully independent light circuits
• Eight intensity levels per circuit (5%, 15%, 30%, 45%, 60%, 75%, 100%)

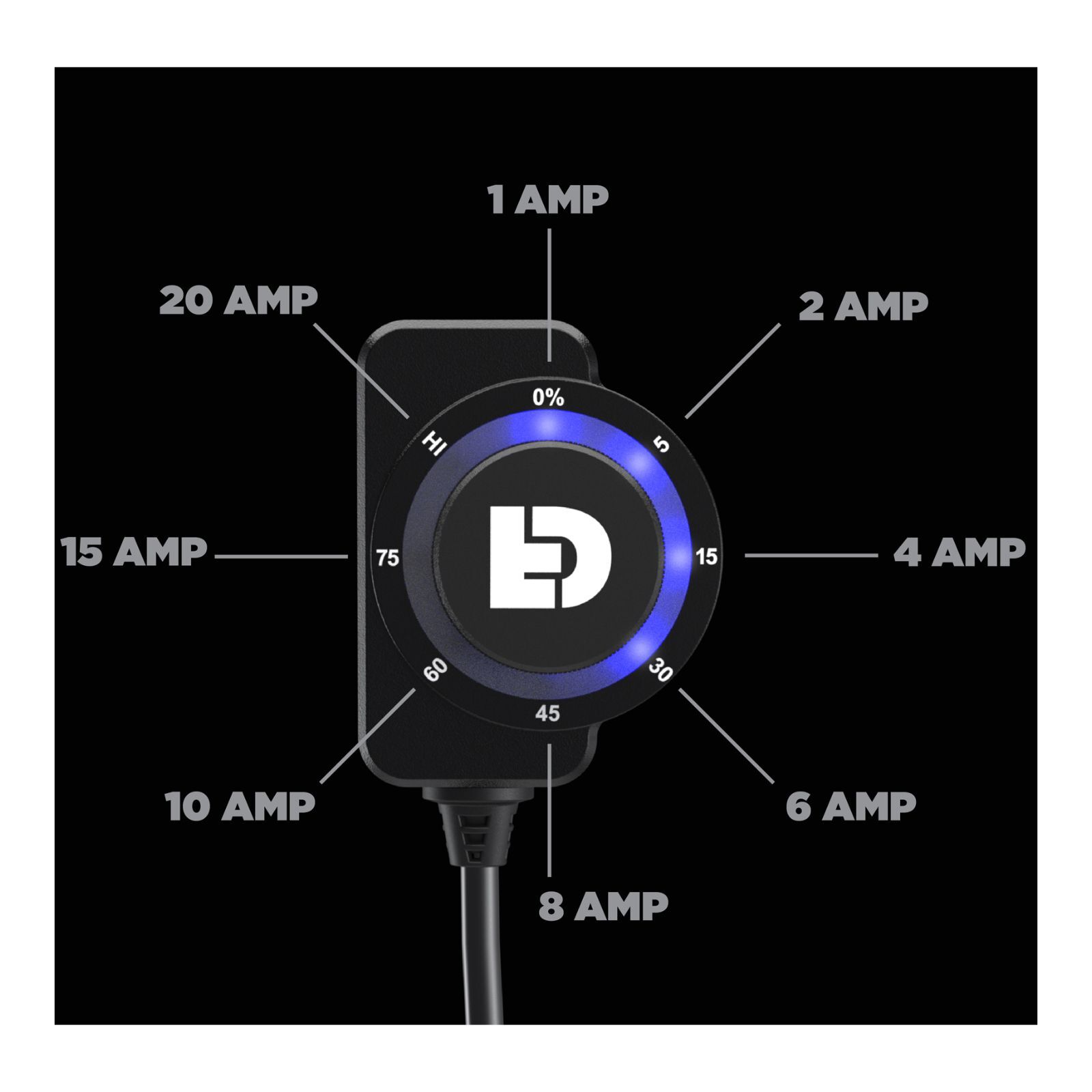

• Eight electronic fuse values (1A, 2A, 4A, 6A, 8A, 10A, 15A, 20A)

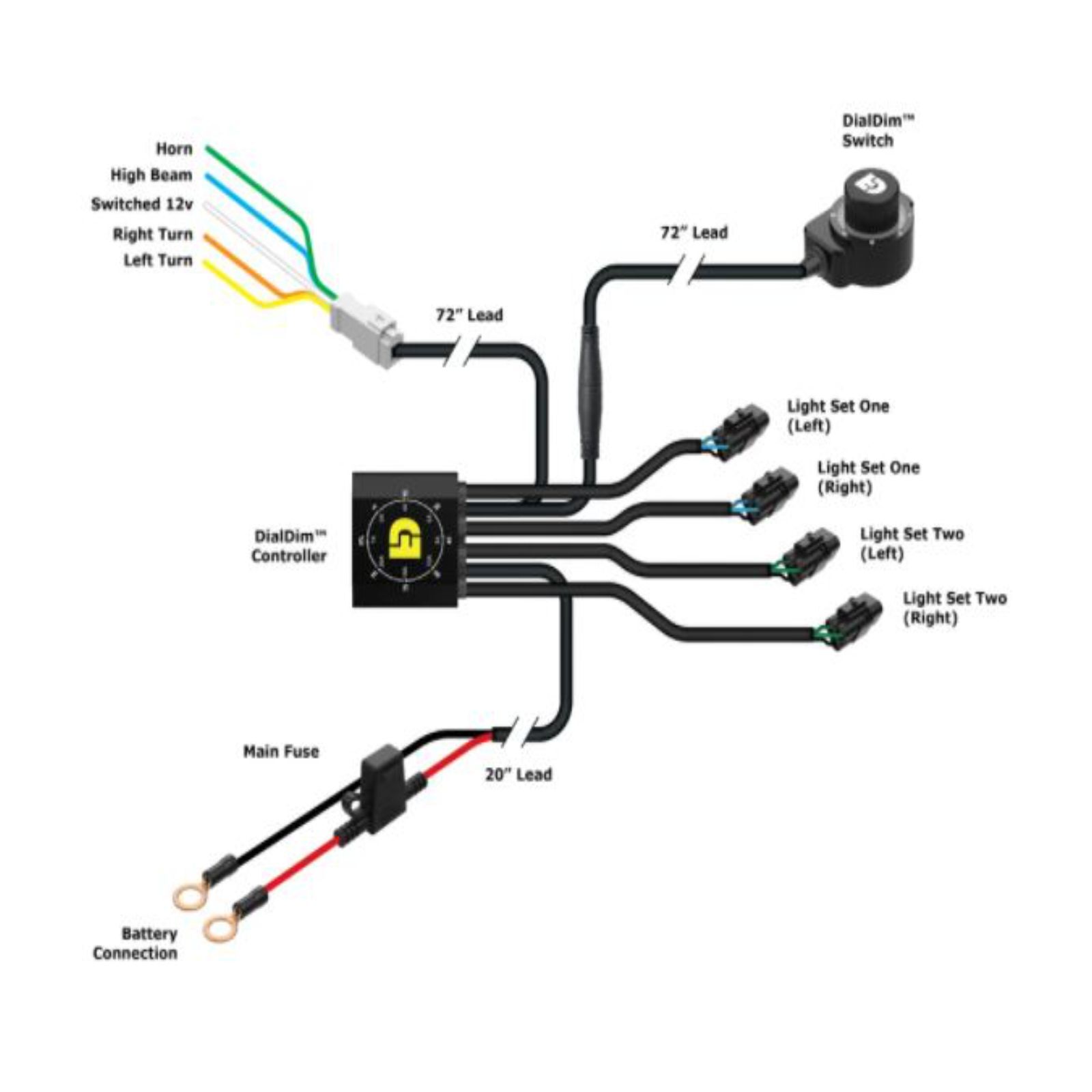

• Five feature input wires (ignition, high beam, horn, left turn, right turn)
• 20A max per circuit (30A max combined)
• Operating Voltage: 12 VDC

Features:

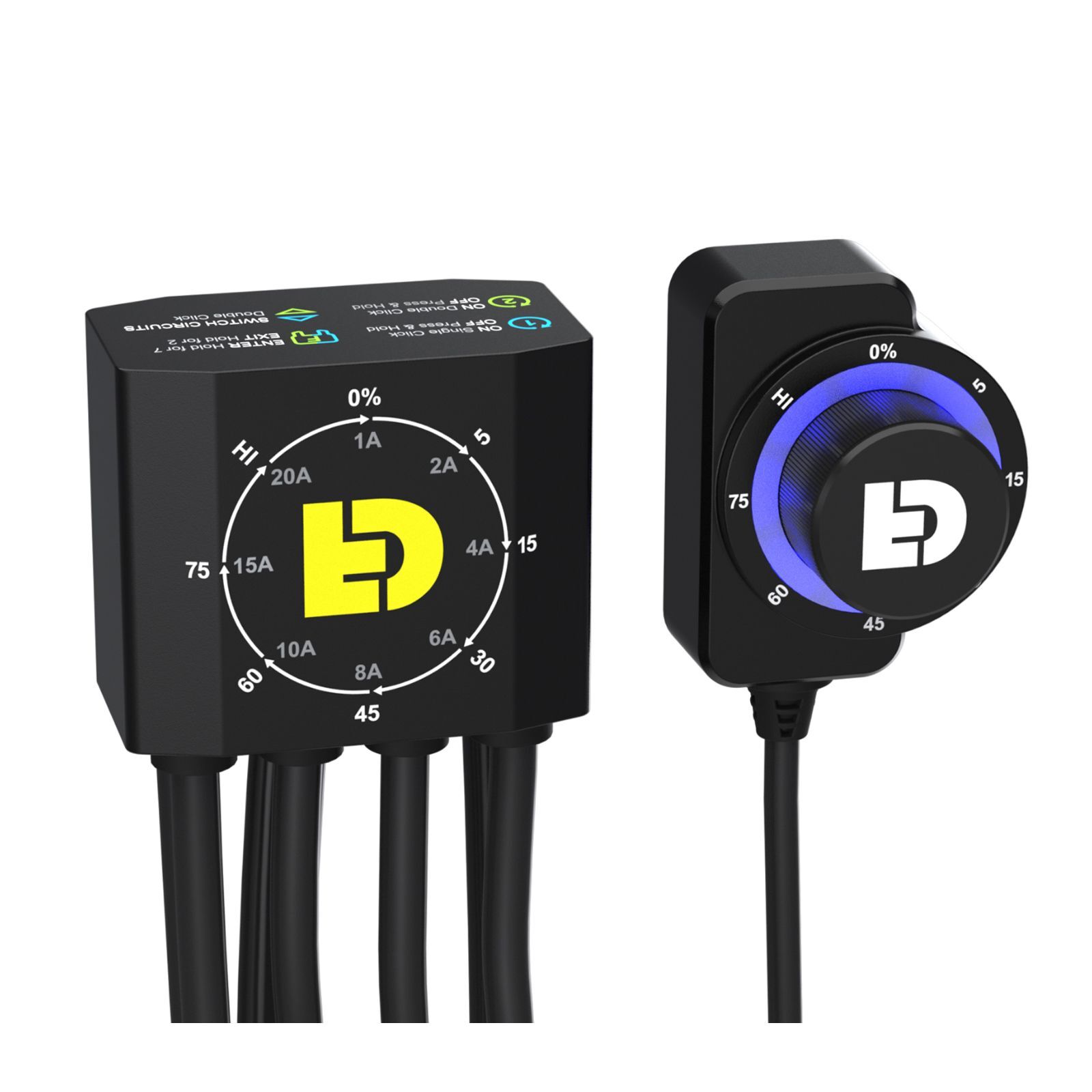

• (1x) DialDim™ Controller Harness
• (1x) DialDim™ Multi-function Switch
• (1x) 7/8" Handlebar Switch Mount
• (4x) 66" Plug-&-Play Light Extensions
• (1x) Universal Input Trigger Wire Harness

Bike Fitments:

• Fitments
