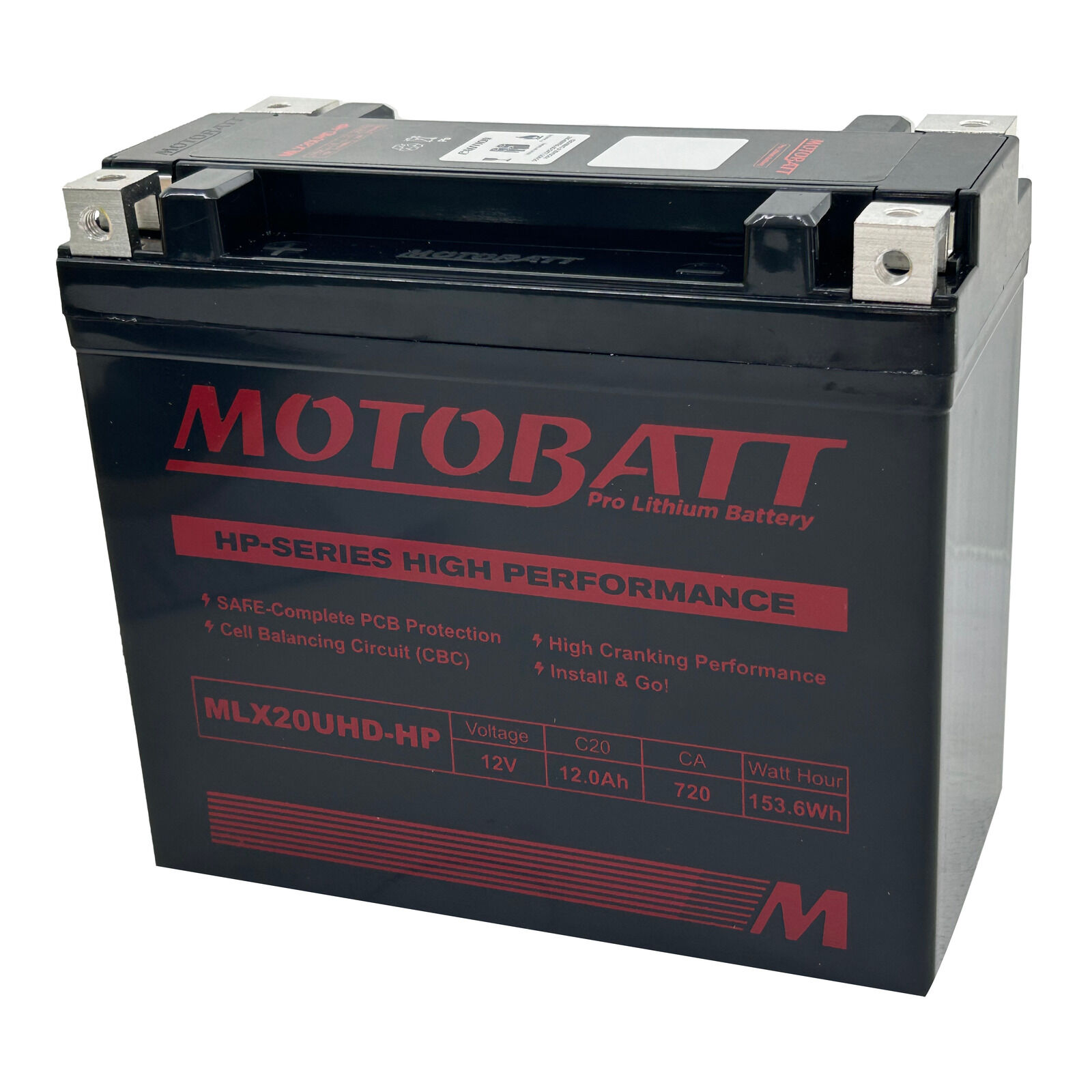

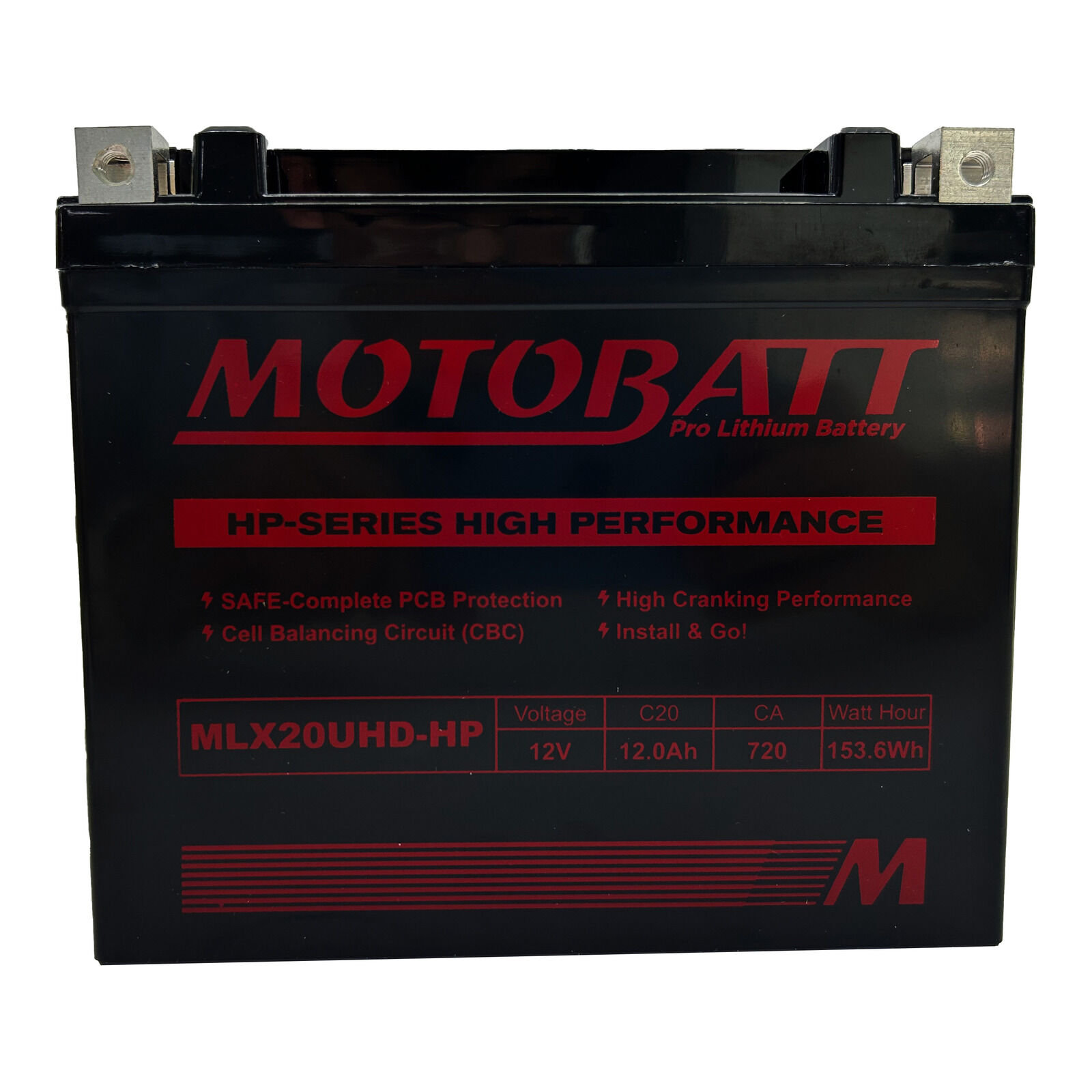

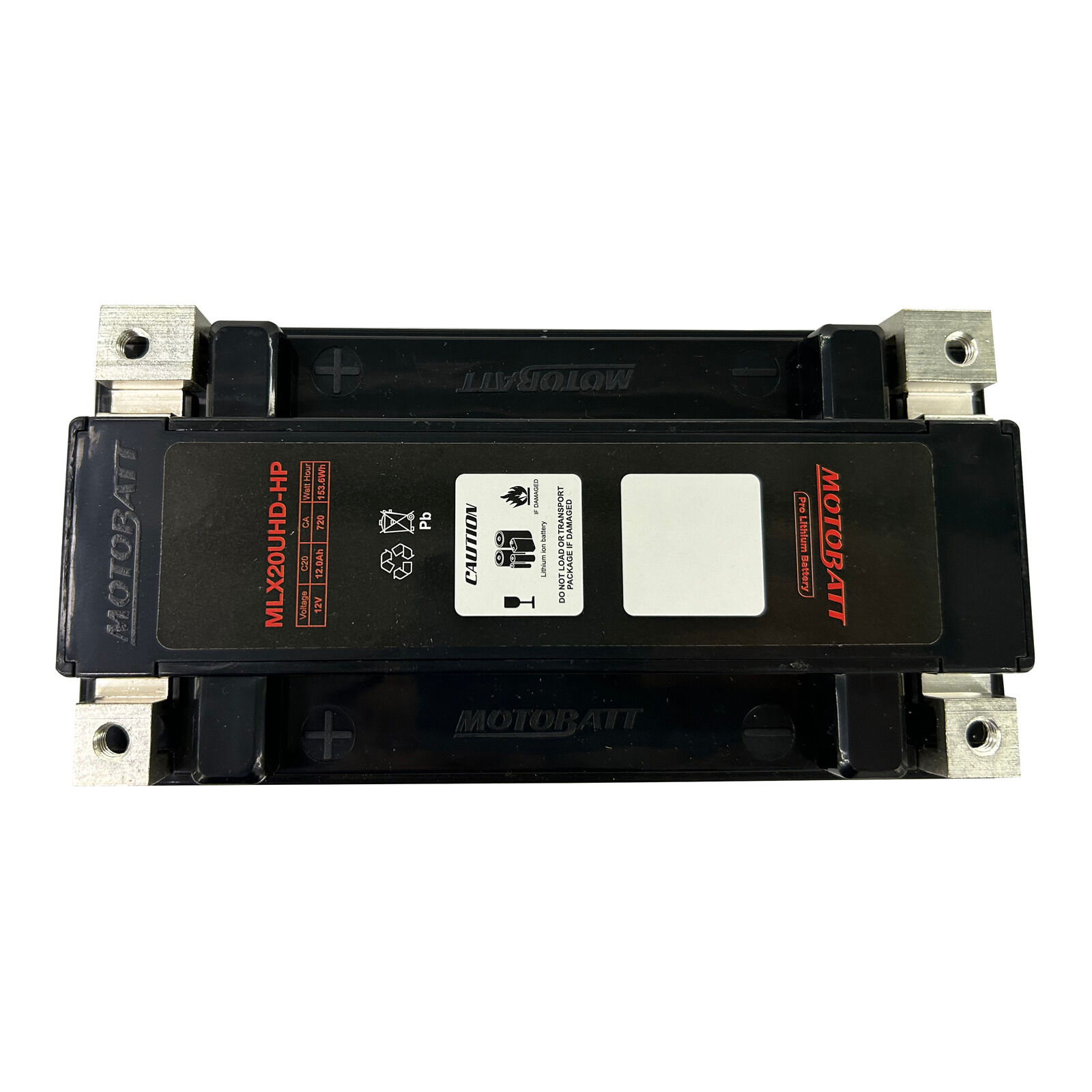

Motobatt Pro Lithium HP Series battery offers complete overcharging over- discharging temperature protection and cell balancing capability to provide maximum performance protection and safety to the battery.

Features:

• Dynamic Cell Balancer: Optimizes each cell voltage to maximum.
• Over-Charge Protection: Prevents the machine or charger from overcharging the battery; cut off at 15.4V.
• Under Discharge Protection: Prevents the battery from being overdischarged to premature failure; Cut off at 8V
• Thermal Protection.: Temperature sensor shuts down before dangerous temperatures can occur; Cut off at 75°C
• Reactivation: Can be reactivated from shutdown with Motobatt PDCFB Charger or any charger that starts from 0 volts.
• Performance: Designed for performance rides.

Specifications:

• Battery Type: MLX20UHD-HP Pro Lithium Lifepo4
• Voltage: 13.2V
• Capacity: 12A
• CCA: 720
• Weight: 3.06Lbs (1.39KG)
• Dimensions (in / mm):
  • L: 6.89 (175)
  • W: 3.43 (87)
  • H: 6.10 (155)
  • TW: 3.94 (100)
  • TH: 6.89 (175)
• Assembly Figure Terminal Locations: 4
• Terminals: 4 Fixed HD Compatible
• Screws: 2 M6X10 (Part#2xMPS3)
• Spacers:
  • 1x 175x87x20 mm Height Spacer Pt (EVA7)
  • 1x 170x115x15 mm Width Spacer Pt (EVA8)

Bike Fitment:

• Harley Davidson FLSTF Softail Fat Boy 1990
• Harley Davidson FLSTF Softail Fat Boy 1991
• Harley Davidson FLSTF Softail Fat Boy 1992
• Harley Davidson FLSTF Softail Fat Boy 1993
• Harley Davidson FLSTF Softail Fat Boy 1994
• Harley Davidson FLSTF Softail Fat Boy 1995
• Harley Davidson FLSTF Softail Fat Boy 1996
• Harley Davidson FLSTF Softail Fat Boy 1997
• Harley Davidson FLSTF Softail Fat Boy 1998
• Harley Davidson FLSTF Softail Fat Boy 1999
• Harley Davidson FLSTF Softail Fat Boy 2000
• Harley Davidson FLSTF Softail Fat Boy 2001
• Harley Davidson FLSTF Softail Fat Boy 2002
• Harley Davidson FLSTF Softail Fat Boy 2003
• Harley Davidson FLSTF Softail Fat Boy 2004
• Harley Davidson FLSTF Softail Fat Boy 2005
• Harley Davidson FLSTF Softail Fat Boy 2006
• Harley Davidson FLSTF Softail Fat Boy 2007
• Harley Davidson FLSTF Softail Fat Boy 2008
• Harley Davidson FLSTF Softail Fat Boy 2009
• Harley Davidson FLSTF Softail Fat Boy 2010
• Harley Davidson FLSTF Softail Fat Boy 2011
• Harley Davidson FLSTF Softail Fat Boy 2012
• Harley Davidson FLSTF Softail Fat Boy 2013
• Harley Davidson FLSTF Softail Fat Boy 2014
• Harley Davidson FLSTF Softail Fat Boy 2015
• Harley Davidson FLSTF Softail Fat Boy 2016
• Harley Davidson FLSTF Softail Fat Boy 2017
