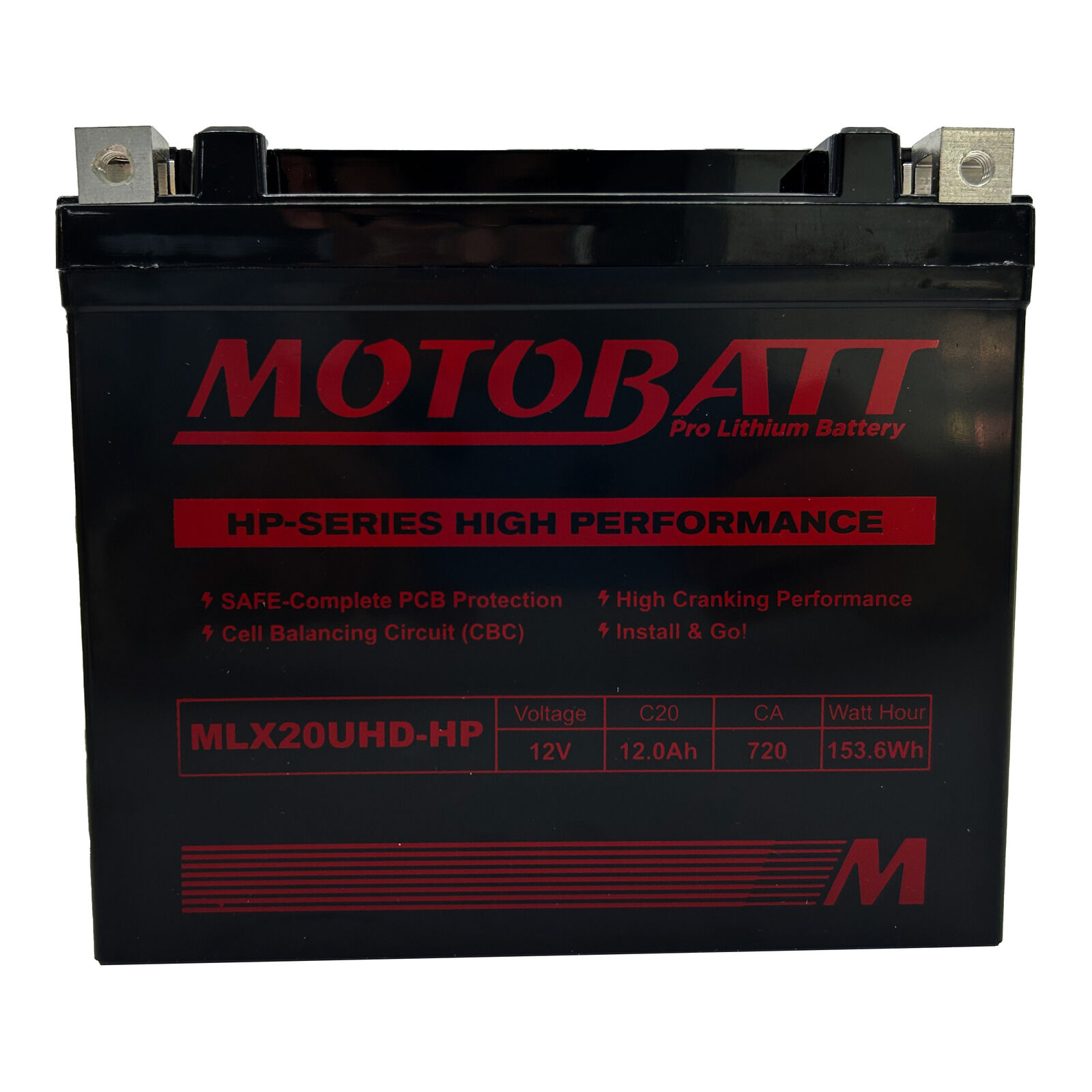

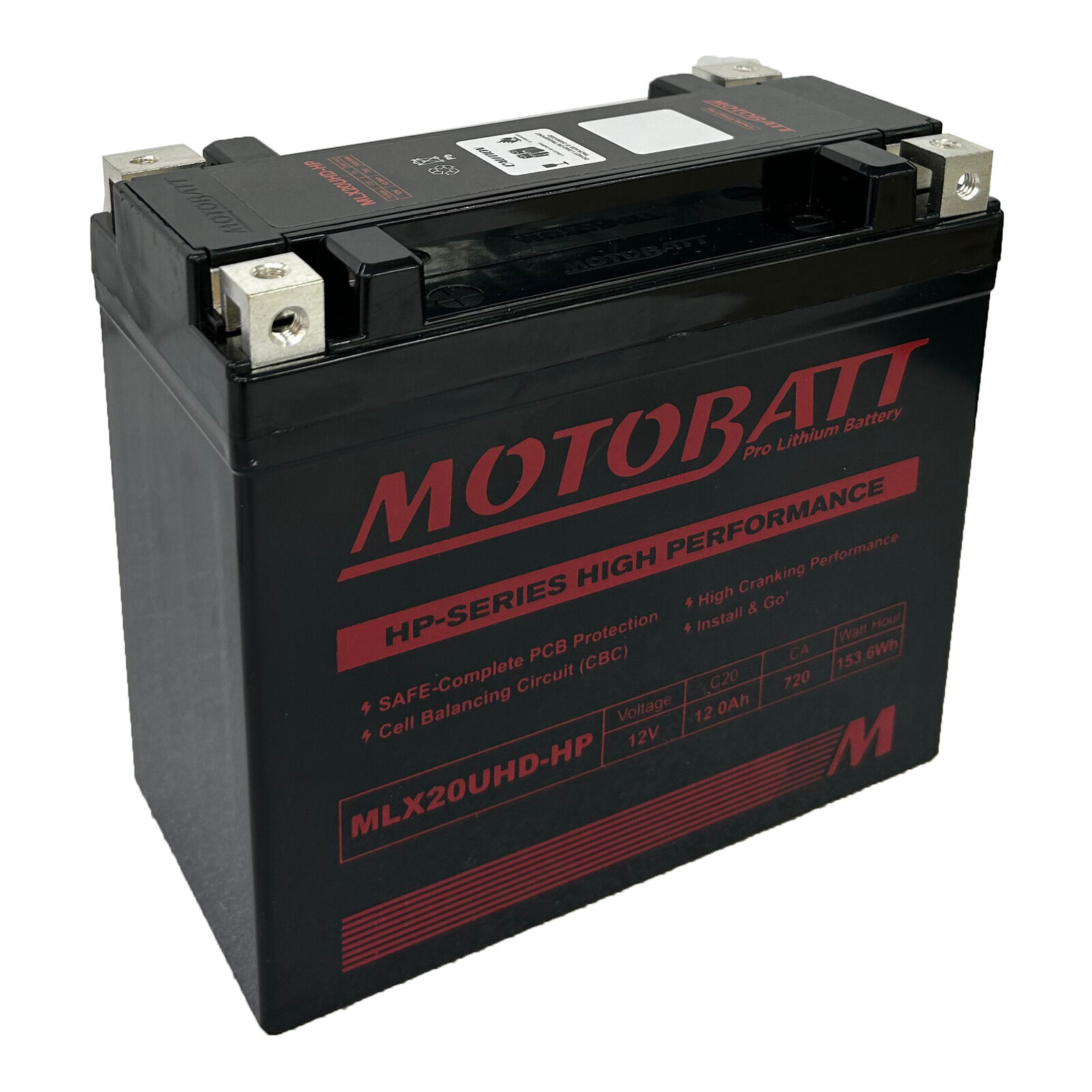

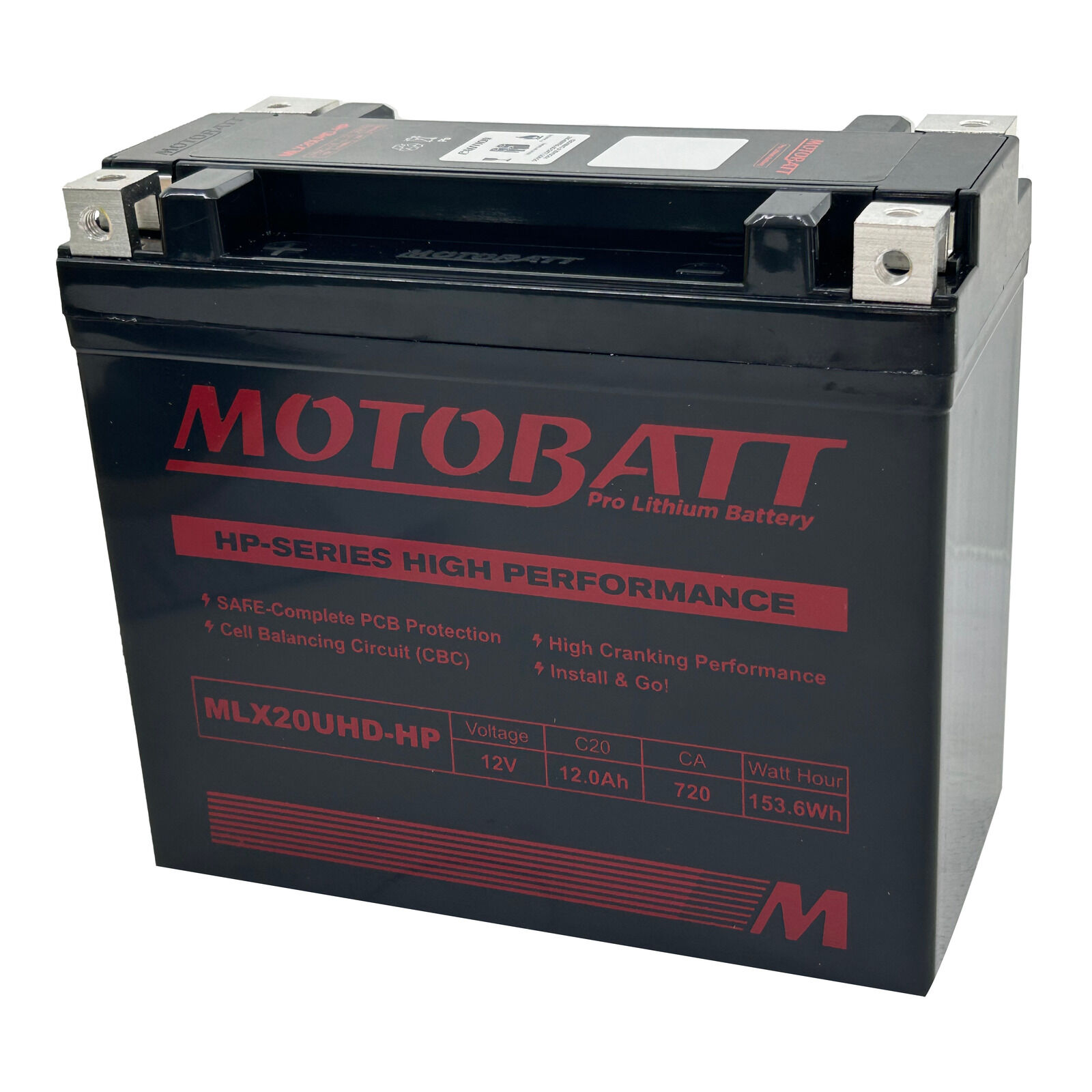

Motobatt Pro Lithium HP Series battery offers complete overcharging over- discharging temperature protection and cell balancing capability to provide maximum performance protection and safety to the battery.

Features:

  • Dynamic Cell Balancer: Optimizes each cell voltage to maximum.
  • Over-Charge Protection: Prevents the machine or charger from overcharging the battery; cut off at 15.4V.
  • Under Discharge Protection: Prevents the battery from being overdischarged to premature failure; Cut off at 8V
  • Thermal Protection.: Temperature sensor shuts down before dangerous temperatures can occur; Cut off at 75°C
  • Reactivation: Can be reactivated from shutdown with Motobatt PDCFB Charger or any charger that starts from 0 volts.
  • Performance: Designed for performance rides.

Specifications:

  • Battery Type: MLX20UHD-HP Pro Lithium Lifepo4
  • Voltage: 13.2V
  • Capacity: 12A
  • CCA: 720
  • Weight: 3.06Lbs (1.39KG)
  • Dimensions (in / mm):
    • L: 6.89 (175)
    • W: 3.43 (87)
    • H: 6.10 (155)
    • TW: 3.94 (100)
    • TH: 6.89 (175)

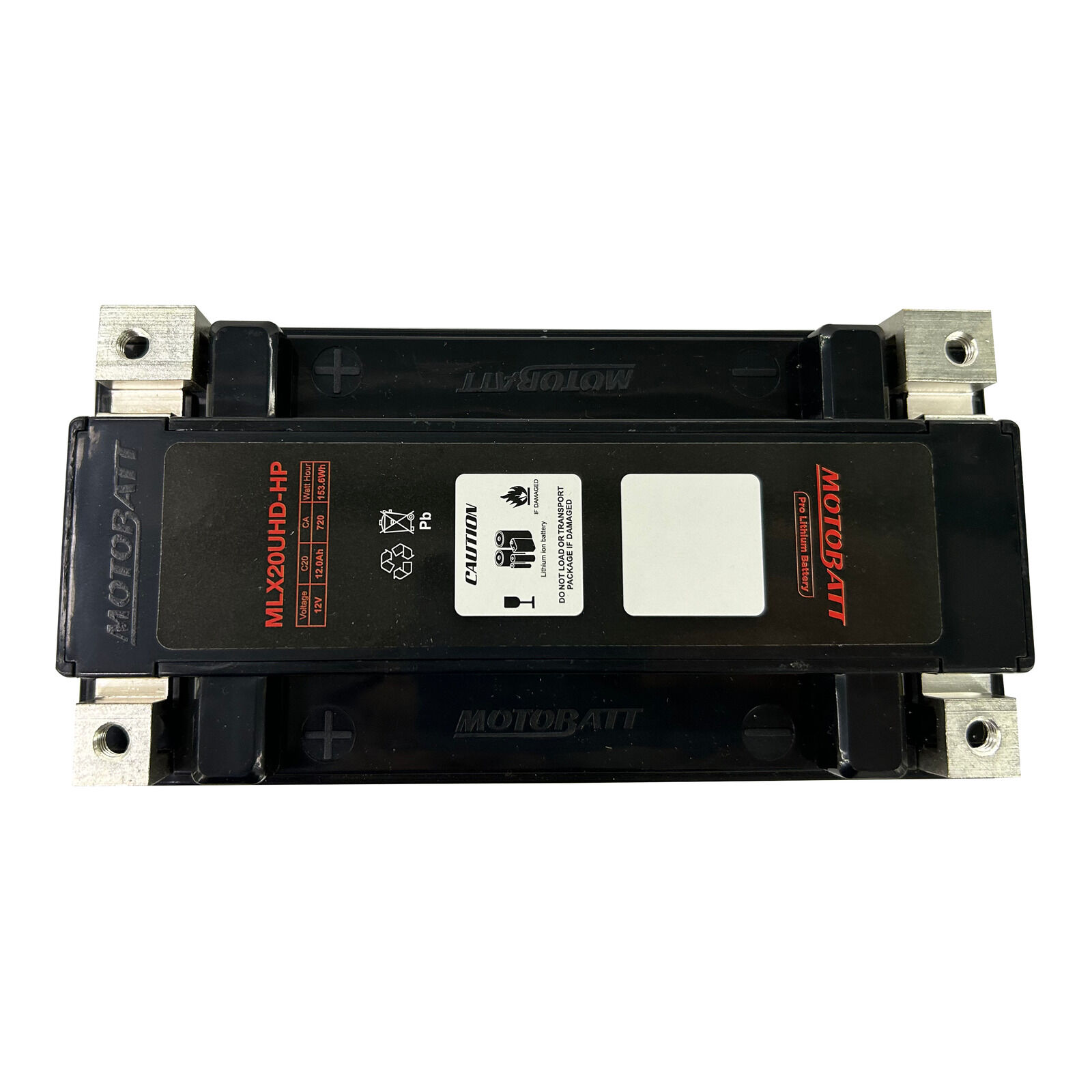

  • Assembly Figure Terminal Locations: 4
  • Terminals: 4 Fixed HD Compatible
  • Screws: 2 M6X10 (Part#2xMPS3)
  • Spacers:
    • 1x 175x87x20 mm Height Spacer Pt (EVA7)
    • 1x 170x115x15 mm Width Spacer Pt (EVA8)


Bike Fitment:

  • Harley Davidson FXST 1340 Softail Standard 1984
  • Harley Davidson FXST 1340 Softail Standard 1985
  • Harley Davidson FXST 1340 Softail Standard 1986
  • Harley Davidson FXST 1340 Softail Standard 1987
  • Harley Davidson FXST 1340 Softail Standard 1988
  • Harley Davidson FXST 1340 Softail Standard 1989
  • Harley Davidson FXST 1340 Softail Standard 1990
  • Harley Davidson FXST 1340 Softail Standard 1991
  • Harley Davidson FXST 1340 Softail Standard 1992
  • Harley Davidson FXST 1340 Softail Standard 1993
  • Harley Davidson FXST 1340 Softail Standard 1994
  • Harley Davidson FXST 1340 Softail Standard 1995
  • Harley Davidson FXST 1340 Softail Standard 1996
  • Harley Davidson FXST 1340 Softail Standard 1997
  • Harley Davidson FXST 1340 Softail Standard 1998
  • Harley Davidson FXST 1340 Softail Standard 1999
SKU MBLX20UHDHP_HD85
Brand Motobatt
Shipping Weight 0.4900kg
