NGK have over 80 years of experience in spark plug manufacturing and are the world leader in spark plug technology. NGK has an extensive range of spark plugs each with their own unique characteristics specifically engineered to its application and designed to suit a broad range of motorcycles ATVs & UTVs in Australasia. With NGK's dedication to quality outstanding reliability and state of the art manufacturing techniques you can rely on your NGK Spark Plugs.

Don’t just ask for a spark plug insist on NGK.

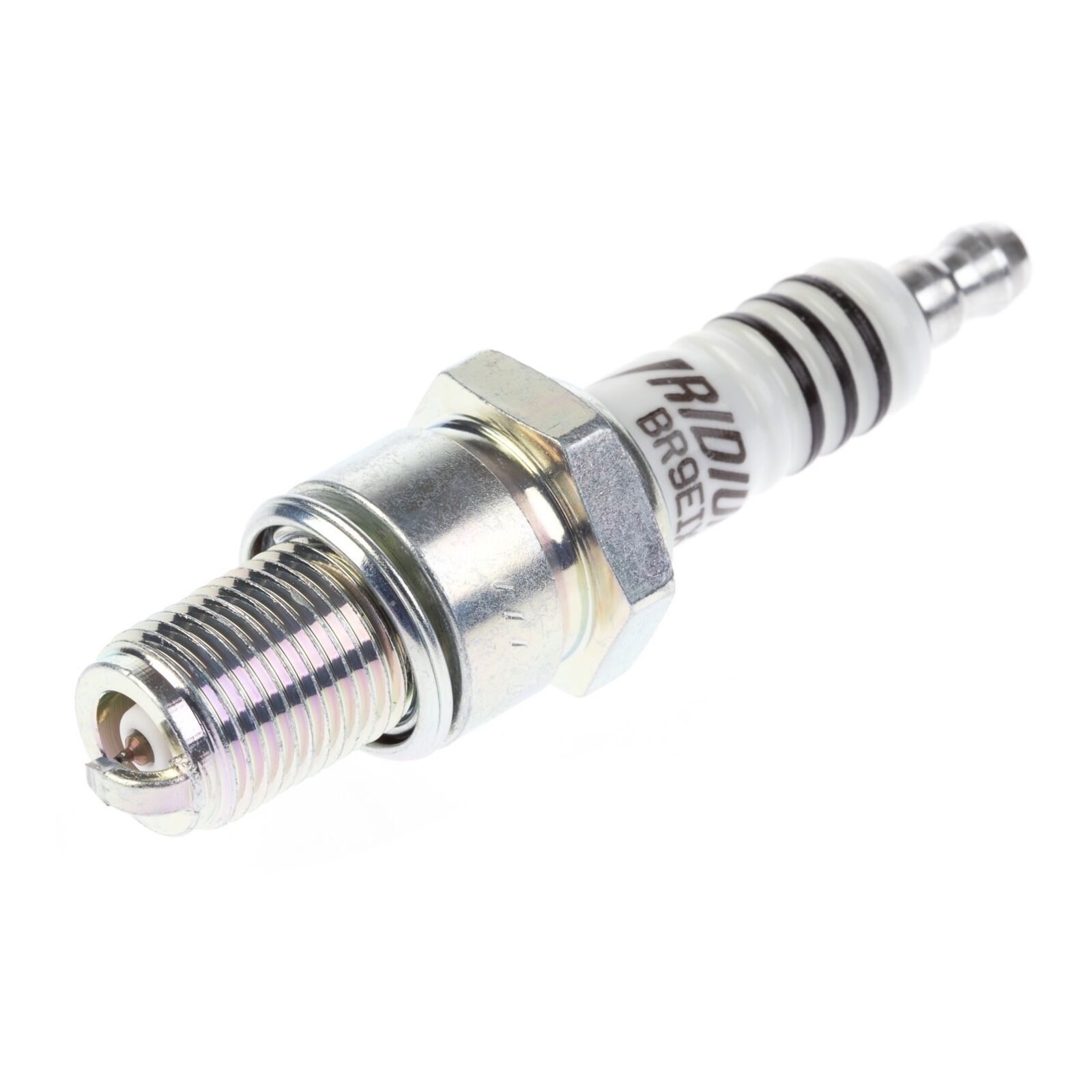

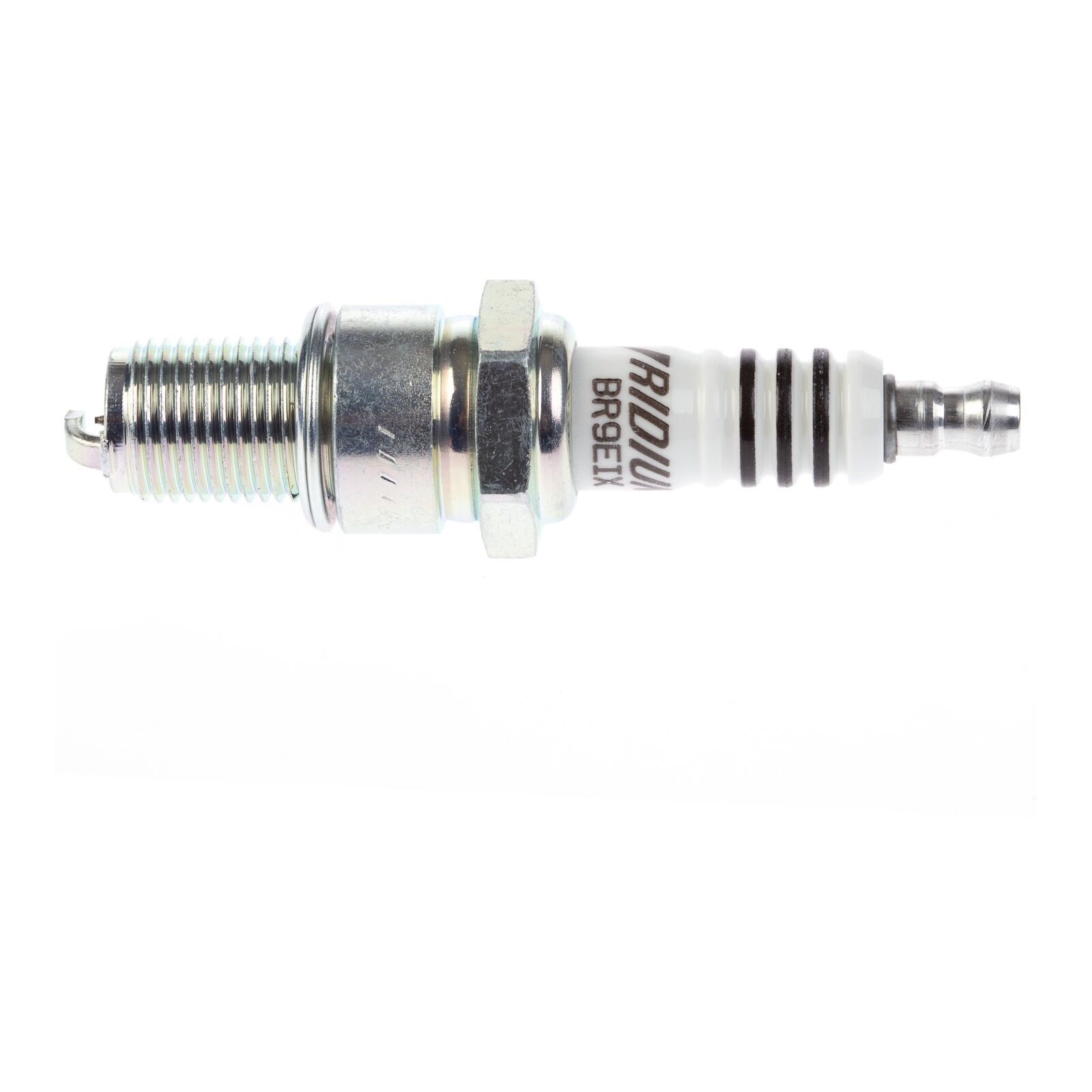

The improved throttle response superior anti-fouling and high-ignitability make Iridium IX^® ideal for the performance enthusiast. Iridium’s extremely high melting point is perfectly suited to today’s high-temperature engines delivering outstanding acceleration fuel efficiency and durability.

• Fine iridium tip ensures high durability and a consistently stable spark
• Trivalent metal plating for superior anti-corrosion and anti-seizing properties
• Outstanding acceleration high fuel efficiency and durability

Shell

• Thread Size: 14mm
• Thread Pitch: 1.25mm
• Seat Type: Gasket
• Resistor Value: 5K Ohm
• Reach: 19mm (3/4 )
• Hex Size: 21mm (13/16 )
• Terminal Type: Removable Nut
• Overall Height: ISO
• Gap: 0.8mm (0.031 )

Centre Electrode

• Material: Iridium
• Type: Fine Wire
• Size: 0.6mm
• Projection: Non-Projected

Ground Electrode

• Material: Nickel
• Type: Standard
• Shape: Taper Cut
• Quantity: 1

Specifications

• Heat Range: 9
• Resistor: Yes

Bike Fitment:

• Honda CR125R 1986
• Honda CR125R 1987
• Honda CR125R 1988
• Honda CR125R 1989
• Honda CR125R 1990
• Honda CR125R 1991
• Honda CR125R 1992
• Honda CR125R 1993
• Honda CR125R 1994
• Honda CR125R 1995
• Honda CR125R 1996
• Honda CR125R 1997
• Honda CR125R 1998
• Honda CR125R 1999
• Honda CR125R 2000
• Honda CR125R 2001
• Honda CR125R 2002
• Honda CR125R 2003
• Honda CR125R 2004
• Honda CR125R 2005
• Honda CR125R 2006
• Honda CR125R 2007
