NGK Spark Plug for Polaris Scrambler 500 4X4 1998-2011

NGK have over 80 years of experience in spark plug manufacturing and are the world leader in spark plug technology. NGK has an extensive range of spark plugs each with their own unique characteristics specifically engineered to its application and designed to suit a broad range of motorcycles ATVs & UTVs in Australasia. With NGK's dedication to quality outstanding reliability and state of the art manufacturing techniques you can rely on your NGK Spark Plugs.

Don’t just ask for a spark plug insist on NGK.

The 98% pure copper core delivers increased heat dissipation for more reliable starts and reduced risk of overheating. While cold-rolled threads prevent cross-threading and damage to cylinder heads and a trivalent plating eliminates the need for anti-seize. Complete with a high-grade alumina silicate ceramic.

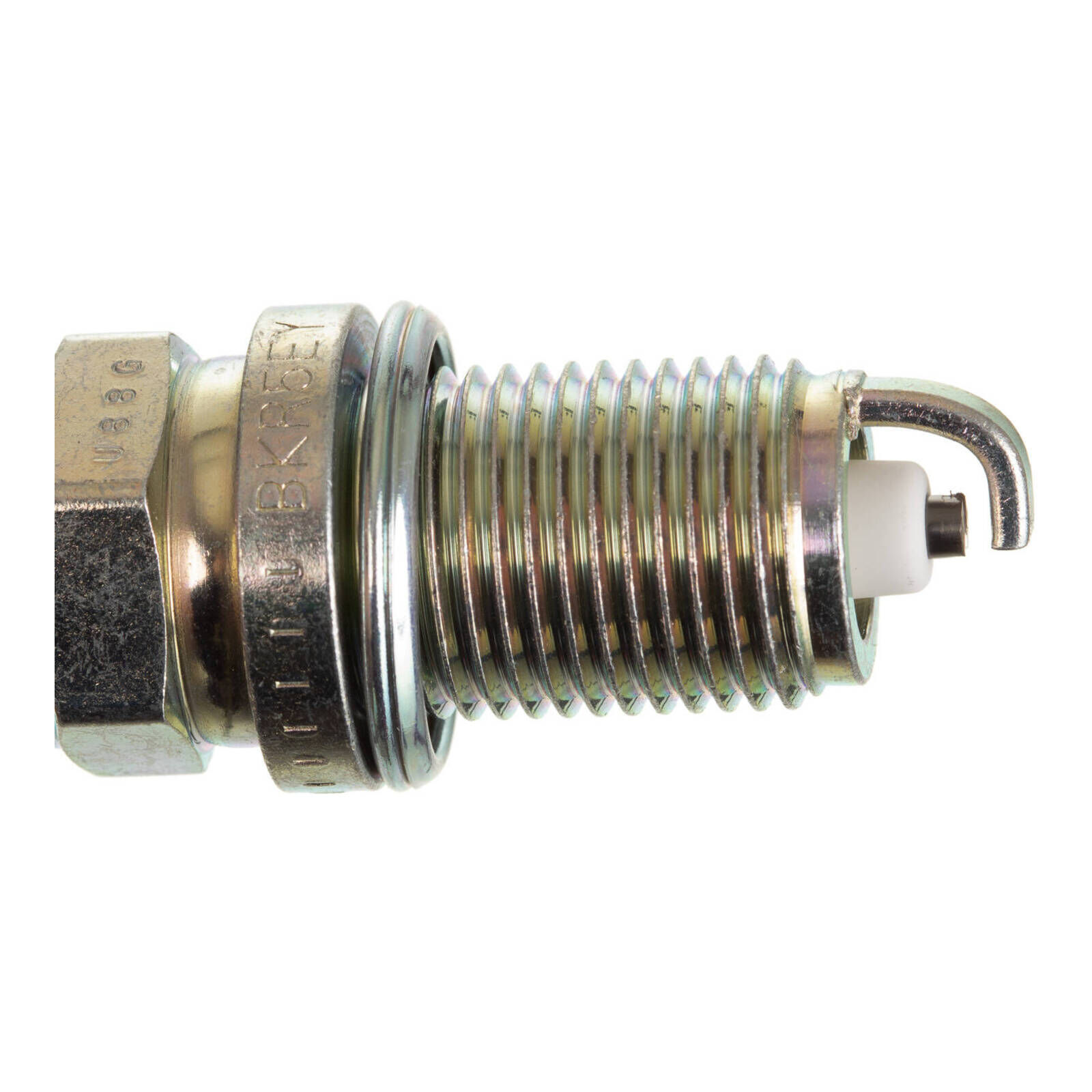

The principle of NGK's patented V-grooved spark plugs is technically simple but very effective. A V-groove is situated in the centre electrode. This forces the spark to occur at the outer edge of the centre electrode where it is easier to ignite the air-fuel mixture. In addition the voltage required to produce a spark is reduced. These two features give the benefit of improved ignitability especially in modern low-emission lean-burn engines even under extreme operating conditions.

Shell

• Thread Size: 14mm
• Thread Pitch: 1.25mm
• Seat Type: Gasket
• Resistor Value: 5K Ohm
• Reach: 19mm (3/4 )
• Hex Size: 16mm (5/8 )
• Terminal Type: Solid
• Overall Height: ISO
• Gap: 1.1mm (0.043 )

Centre Electrode

• Material: Nickel
• Type: V-Cut
• Size: 2.5mm
• Projection: Projected

Ground Electrode

• Material: Nickel
• Type: Standard
• Quantity: 1

Specifications

• Heat Range: 5
• Resistor: Yes

Bike Fitment:

• Polaris Scrambler 500 4X4 1998
• Polaris Scrambler 500 4X4 1999
• Polaris Scrambler 500 4X4 2000
• Polaris Scrambler 500 4X4 2001
• Polaris Scrambler 500 4X4 2002
• Polaris Scrambler 500 4X4 2003
• Polaris Scrambler 500 4X4 2004
• Polaris Scrambler 500 4X4 2005
• Polaris Scrambler 500 4X4 2006
• Polaris Scrambler 500 4X4 2007
• Polaris Scrambler 500 4X4 2008
• Polaris Scrambler 500 4X4 2009
• Polaris Scrambler 500 4X4 2010
• Polaris Scrambler 500 4X4 2011
