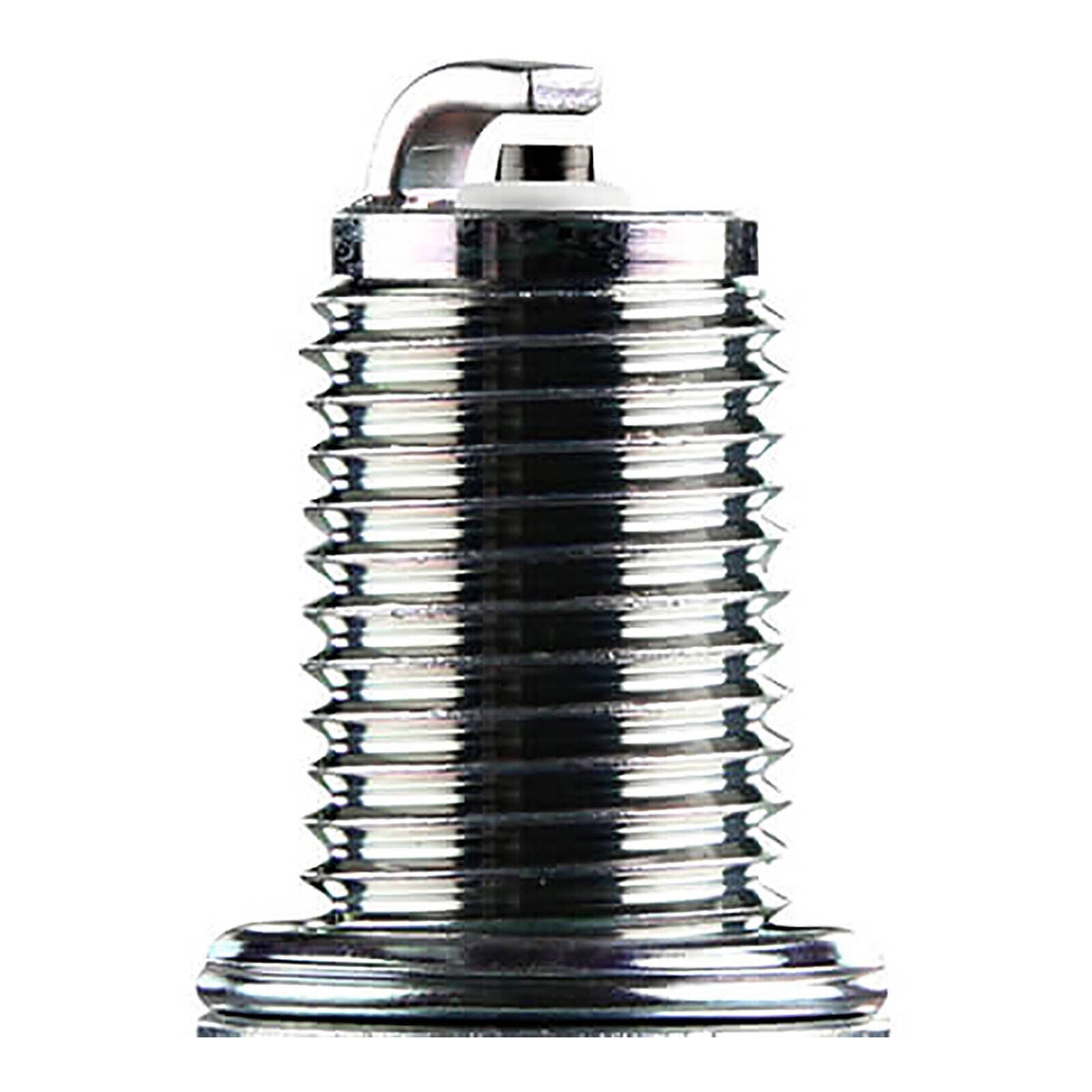

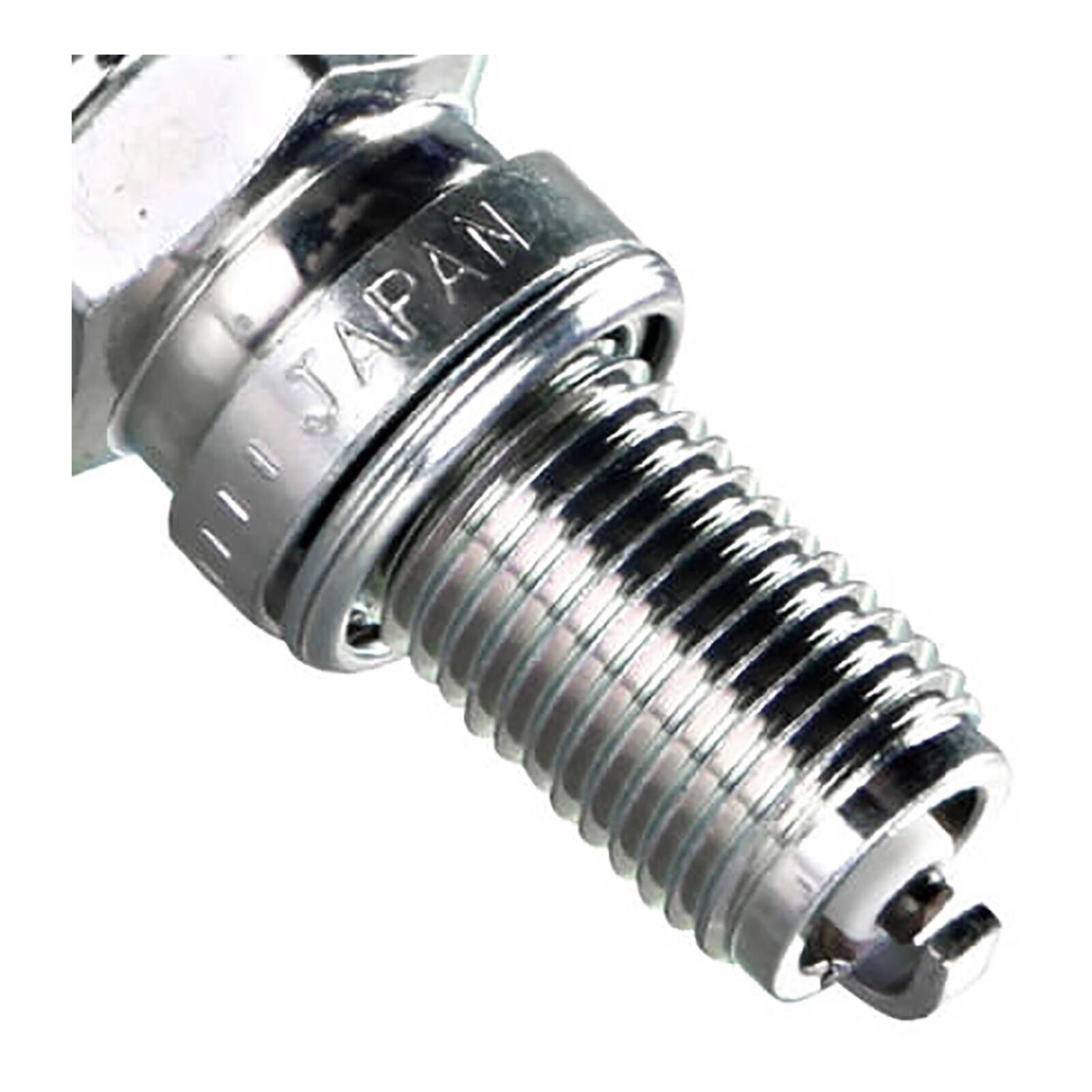

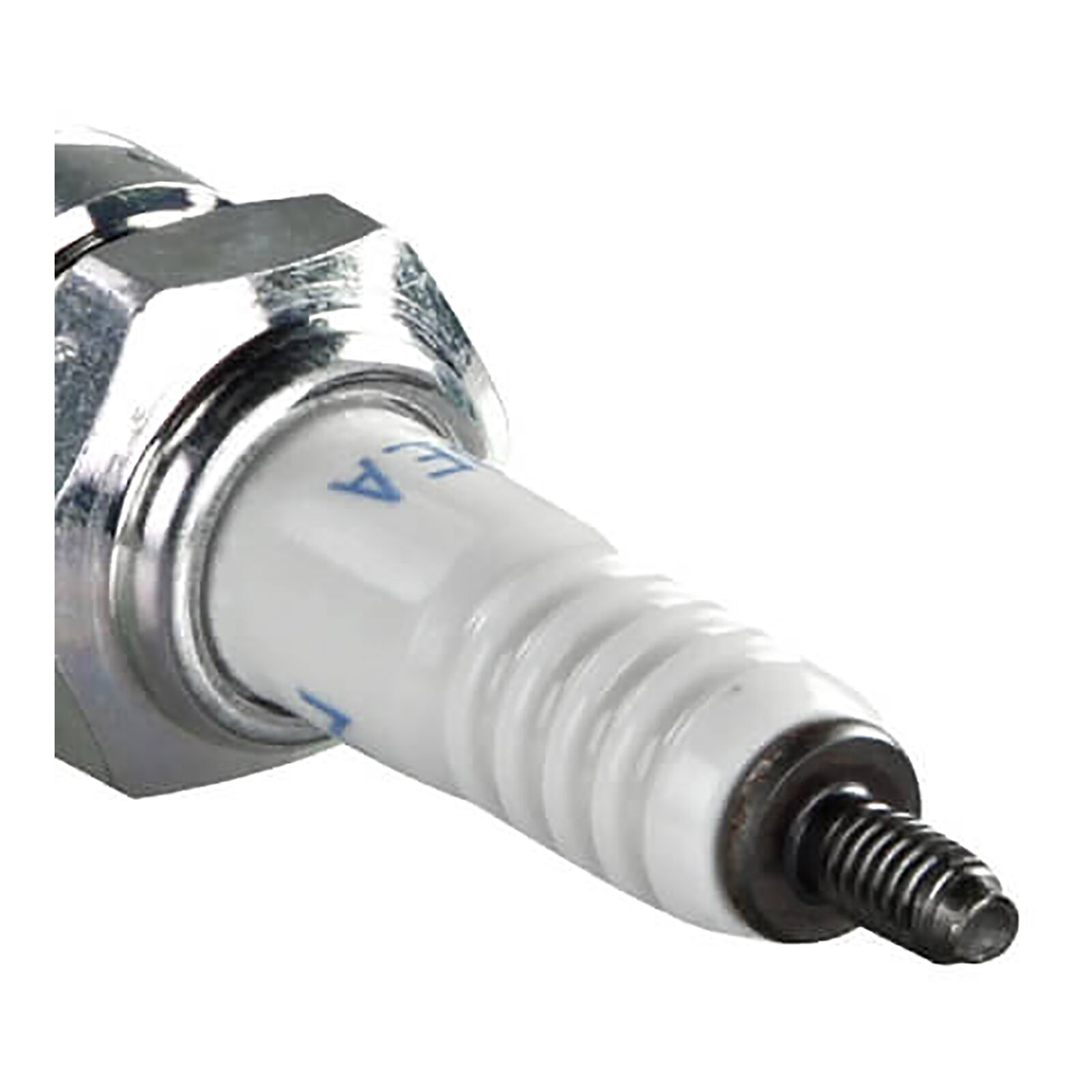

NGK Spark Plug for Suzuki DRZ125 Small Wheel 2003-2021

NGK have over 80 years of experience in spark plug manufacturing and are the world leader in spark plug technology. NGK has an extensive range of spark plugs each with their own unique characteristics specifically engineered to its application and designed to suit a broad range of motorcycles ATVs & UTVs in Australasia. With NGK's dedication to quality outstanding reliability and state of the art manufacturing techniques you can rely on your NGK Spark Plugs.

Don’t just ask for a spark plug insist on NGK.

The 98% pure copper core delivers increased heat dissipation for more reliable starts and reduced risk of overheating. While cold-rolled threads prevent cross-threading and damage to cylinder heads and a trivalent plating eliminates the need for anti-seize. Complete with a high-grade alumina silicate ceramic.

Shell

• Thread Size: 12mm
• Thread Pitch: 1.25mm
• Seat Type: Gasket
• Resistor Value: 5K Ohm
• Reach: 19mm (3/4 )
• Hex Size: 18mm
• Terminal Type: Threaded Stud
• Overall Height: ISO
• Gap: 0.7mm (0.028 )

Centre Electrode

• Material: Nickel
• Type: Standard
• Size: 2.5mm
• Projection: Non-Projected

Ground Electrode

• Material: Nickel
• Type: Standard
• Quantity: 1

Specifications

• Heat Range: 8
• Resistor: Yes

Bike Fitment:

• Suzuki DRZ125 Small Wheel 2003
• Suzuki DRZ125 Small Wheel 2004
• Suzuki DRZ125 Small Wheel 2005
• Suzuki DRZ125 Small Wheel 2006
• Suzuki DRZ125 Small Wheel 2007
• Suzuki DRZ125 Small Wheel 2008
• Suzuki DRZ125 Small Wheel 2009
• Suzuki DRZ125 Small Wheel 2010
• Suzuki DRZ125 Small Wheel 2011
• Suzuki DRZ125 Small Wheel 2012
• Suzuki DRZ125 Small Wheel 2013
• Suzuki DRZ125 Small Wheel 2014
• Suzuki DRZ125 Small Wheel 2015
• Suzuki DRZ125 Small Wheel 2016
• Suzuki DRZ125 Small Wheel 2017
• Suzuki DRZ125 Small Wheel 2018
• Suzuki DRZ125 Small Wheel 2019
• Suzuki DRZ125 Small Wheel 2020
• Suzuki DRZ125 Small Wheel 2021
