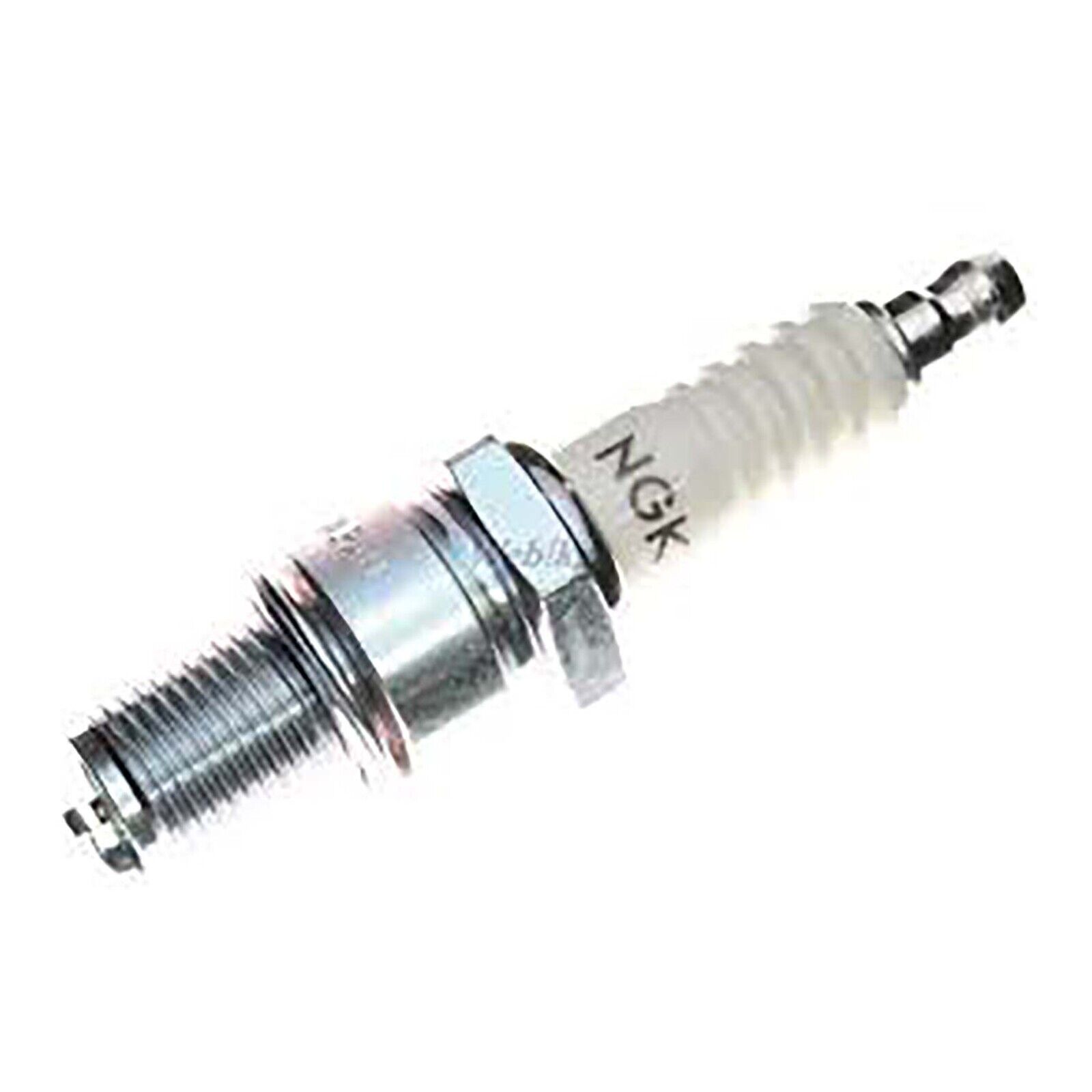

NGK Spark Plug for Yamaha DT175 1974-2006

NGK have over 80 years of experience in spark plug manufacturing and are the world leader in spark plug technology. NGK has an extensive range of spark plugs each with their own unique characteristics specifically engineered to its application and designed to suit a broad range of motorcycles ATVs & UTVs in Australasia. With NGK's dedication to quality outstanding reliability and state of the art manufacturing techniques you can rely on your NGK Spark Plugs.

Don’t just ask for a spark plug insist on NGK.

The 98% pure copper core delivers increased heat dissipation for more reliable starts and reduced risk of overheating. While cold-rolled threads prevent cross-threading and damage to cylinder heads and a trivalent plating eliminates the need for anti-seize. Complete with a high-grade alumina silicate ceramic.

Shell

• Thread Size: 14mm
• Thread Pitch: 1.25mm
• Seat Type: Gasket
• Reach: 19mm (3/4 )
• Hex Size: 21mm (13/16 )
• Terminal Type: Removable Nut
• Overall Height: ISO
• Gap: 0.8mm (0.031 )

Centre Electrode

• Material: Nickel
• Type: Standard
• Size: 2.5mm
• Projection: Non-Projected

Ground Electrode

• Material: Nickel
• Type: Standard
• Quantity: 1

Specifications

• Heat Range: 8

Bike Fitment:

• Yamaha DT175 1974
• Yamaha DT175 1975
• Yamaha DT175 1976
• Yamaha DT175 1977
• Yamaha DT175 1978
• Yamaha DT175 1979
• Yamaha DT175 1980
• Yamaha DT175 1981
• Yamaha DT175 1982
• Yamaha DT175 1983
• Yamaha DT175 1984
• Yamaha DT175 1985
• Yamaha DT175 1986
• Yamaha DT175 1987
• Yamaha DT175 1988
• Yamaha DT175 1989
• Yamaha DT175 1990
• Yamaha DT175 1991
• Yamaha DT175 1992
• Yamaha DT175 1993
• Yamaha DT175 1994
• Yamaha DT175 1995
• Yamaha DT175 1996
• Yamaha DT175 1997
• Yamaha DT175 1998
• Yamaha DT175 1999
• Yamaha DT175 2000
• Yamaha DT175 2001
• Yamaha DT175 2002
• Yamaha DT175 2003
• Yamaha DT175 2004
• Yamaha DT175 2005
• Yamaha DT175 2006
