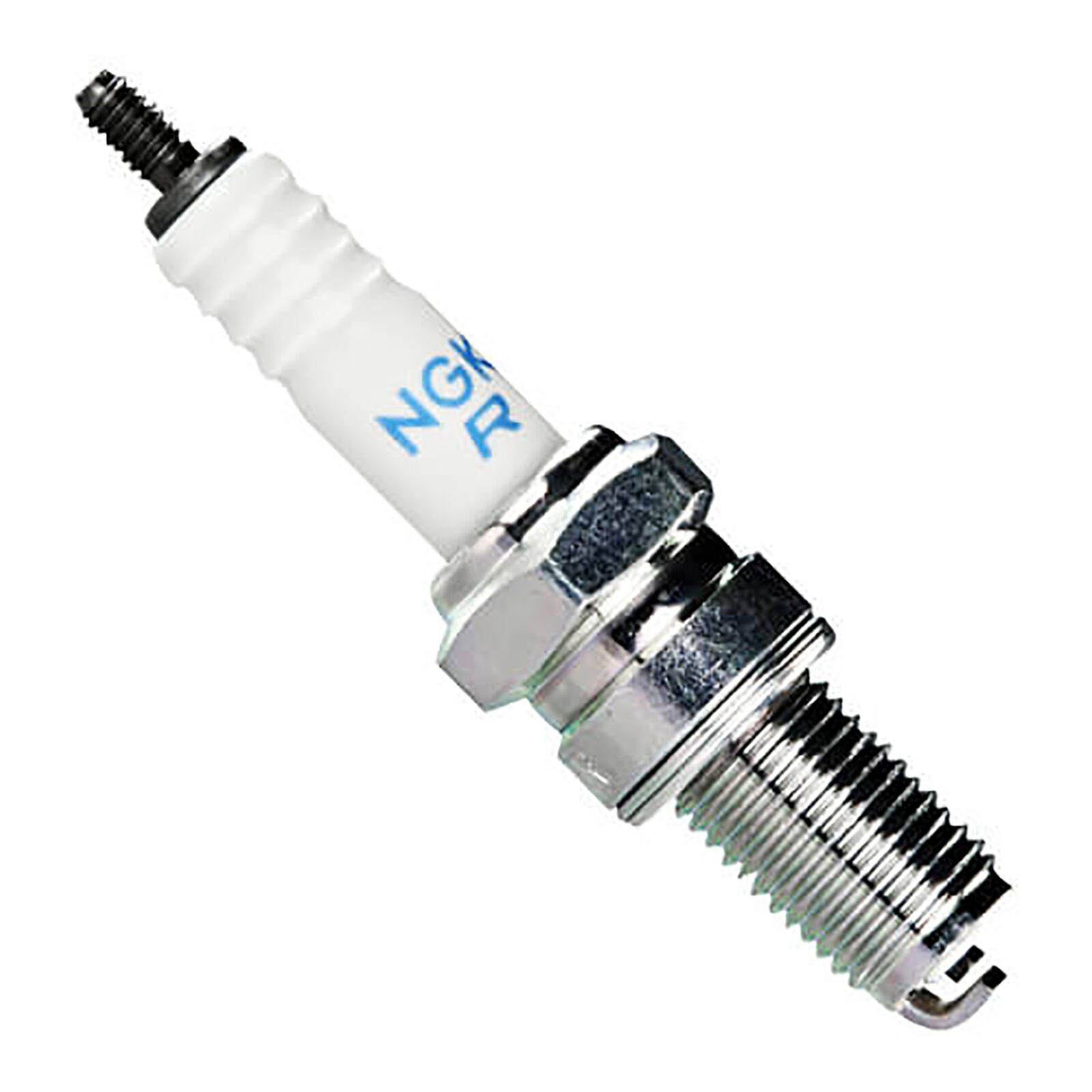

NGK Spark Plug for Yamaha TTR230 2005-2025

NGK have over 80 years of experience in spark plug manufacturing and are the world leader in spark plug technology. NGK has an extensive range of spark plugs each with their own unique characteristics specifically engineered to its application and designed to suit a broad range of motorcycles ATVs & UTVs in Australasia. With NGK's dedication to quality outstanding reliability and state of the art manufacturing techniques you can rely on your NGK Spark Plugs.

Don’t just ask for a spark plug insist on NGK.

The 98% pure copper core delivers increased heat dissipation for more reliable starts and reduced risk of overheating. While cold-rolled threads prevent cross-threading and damage to cylinder heads and a trivalent plating eliminates the need for anti-seize. Complete with a high-grade alumina silicate ceramic.

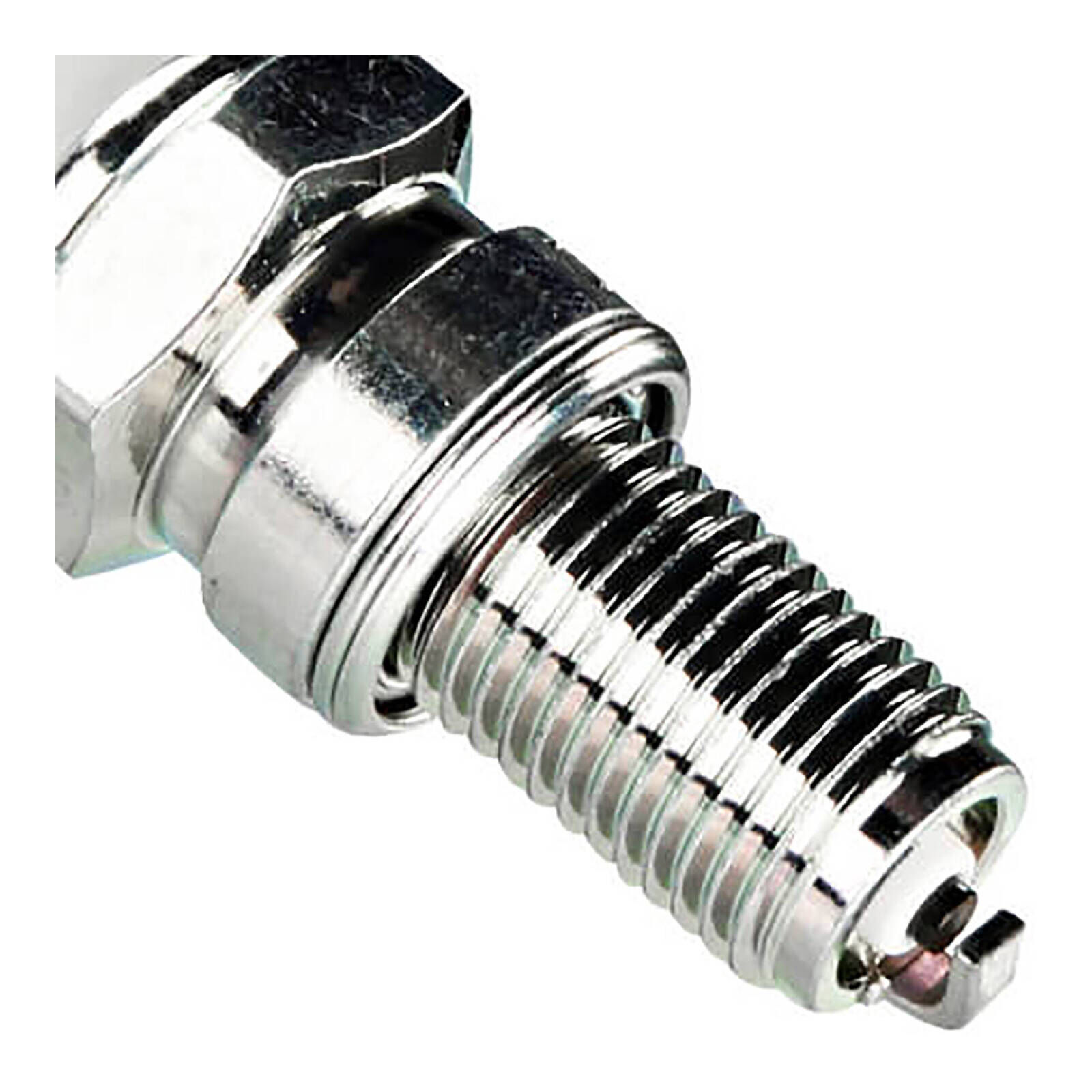

Shell

• Thread Size: 12mm
• Thread Pitch: 1.25mm
• Seat Type: Gasket
• Resistor Value: 5K Ohm
• Reach: 19mm (3/4 )
• Hex Size: 18mm
• Terminal Type: Threaded Stud
• Overall Height: ISO
• Gap: 0.7mm (0.028 )

Centre Electrode

• Material: Nickel
• Type: Standard
• Size: 2.5mm
• Projection: Non-Projected

Ground Electrode

• Material: Nickel
• Type: Standard
• Quantity: 1

Specifications

• Heat Range: 8
• Resistor: Yes

Bike Fitment:

• Yamaha TTR230 2005
• Yamaha TTR230 2006
• Yamaha TTR230 2007
• Yamaha TTR230 2008
• Yamaha TTR230 2009
• Yamaha TTR230 2010
• Yamaha TTR230 2011
• Yamaha TTR230 2012
• Yamaha TTR230 2013
• Yamaha TTR230 2014
• Yamaha TTR230 2015
• Yamaha TTR230 2016
• Yamaha TTR230 2017
• Yamaha TTR230 2018
• Yamaha TTR230 2019
• Yamaha TTR230 2020
• Yamaha TTR230 2021
• Yamaha TTR230 2022
• Yamaha TTR230 2023
• Yamaha TTR230 2024
• Yamaha TTR230 2025
