NGK have over 80 years of experience in spark plug manufacturing and are the world leader in spark plug technology. NGK has an extensive range of spark plugs each with their own unique characteristics specifically engineered to its application and designed to suit a broad range of motorcycles ATVs & UTVs in Australasia. With NGK's dedication to quality outstanding reliability and state of the art manufacturing techniques you can rely on your NGK Spark Plugs.

Don’t just ask for a spark plug insist on NGK.

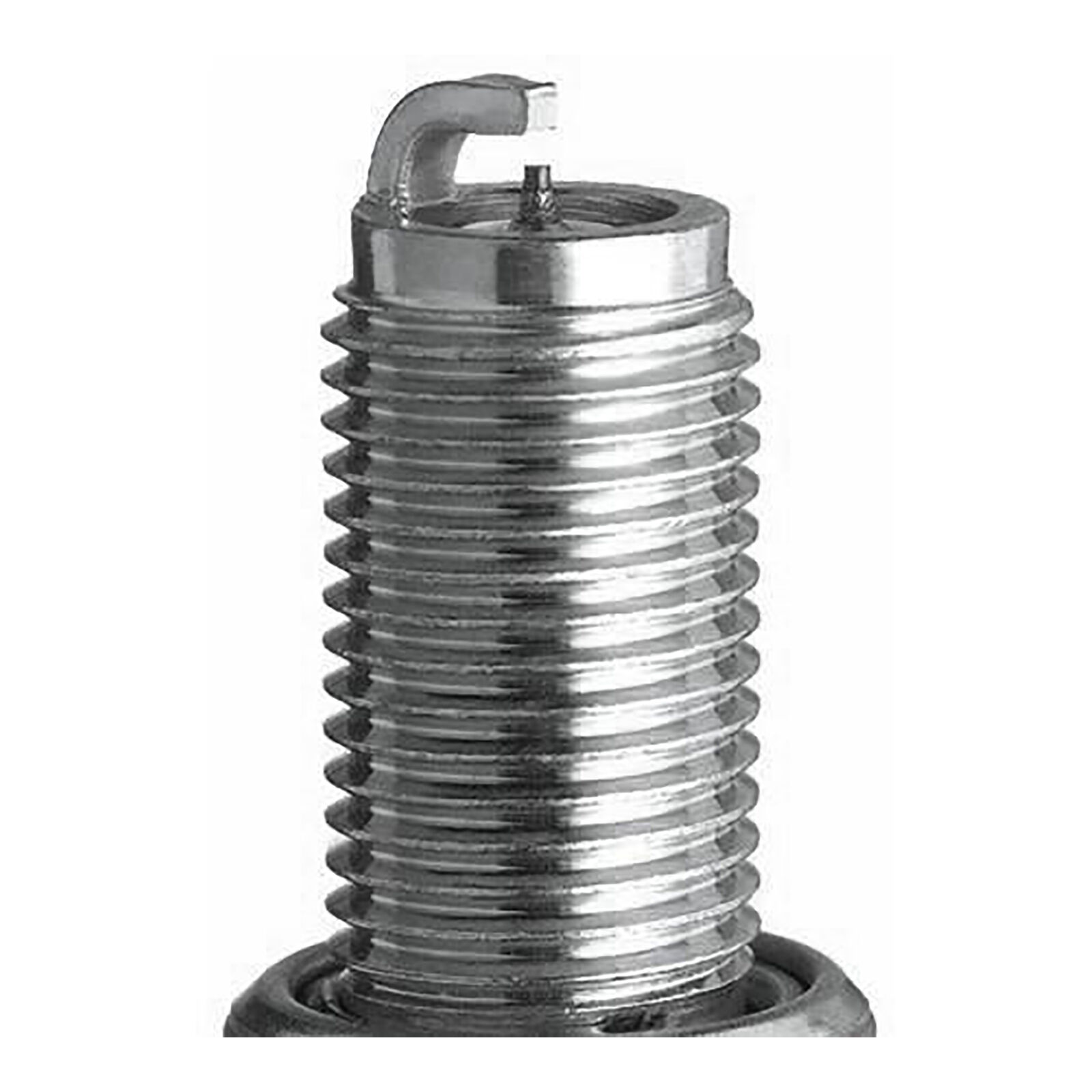

The improved throttle response superior anti-fouling and high-ignitability make Iridium IX^® ideal for the performance enthusiast. Iridium’s extremely high melting point is perfectly suited to today’s high-temperature engines delivering outstanding acceleration fuel efficiency and durability.

• Fine iridium tip ensures high durability and a consistently stable spark
• Trivalent metal plating for superior anti-corrosion and anti-seizing properties
• Outstanding acceleration high fuel efficiency and durability

Shell

• Thread Size: 10mm
• Thread Pitch: 1.0mm
• Seat Type: Gasket
• Resistor Value: 5K Ohm
• Reach: 19mm (3/4 )
• Hex Size: 16mm (5/8 )
• Terminal Type: Threaded Stud
• Overall Height: ISO
• Gap: 0.8mm (0.031 )

Centre Electrode

• Material: Iridium
• Type: Fine Wire
• Size: 0.6mm
• Projection: Non-Projected

Ground Electrode

• Material: Nickel
• Type: Standard
• Shape: Taper Cut
• Quantity: 1

Specifications

• Heat Range: 7
• Resistor: Yes

Bike Fitment:

• Yamaha XP500 TMAX 2001
• Yamaha XP500 TMAX 2002
• Yamaha XP500 TMAX 2003
• Yamaha XP500 TMAX 2004
• Yamaha XP500 TMAX 2005
• Yamaha XP500 TMAX 2006
• Yamaha XP500 TMAX 2007
• Yamaha XP500 TMAX 2008
• Yamaha XP500 TMAX 2009
• Yamaha XP500 TMAX 2010
• Yamaha XP500 TMAX 2011
• Yamaha XP500 TMAX 2012
• Yamaha XP500 TMAX 2013
• Yamaha XP500 TMAX 2014
• Yamaha XP500 TMAX 2015
• Yamaha XP500 TMAX 2016
• Yamaha XP500 TMAX 2017
