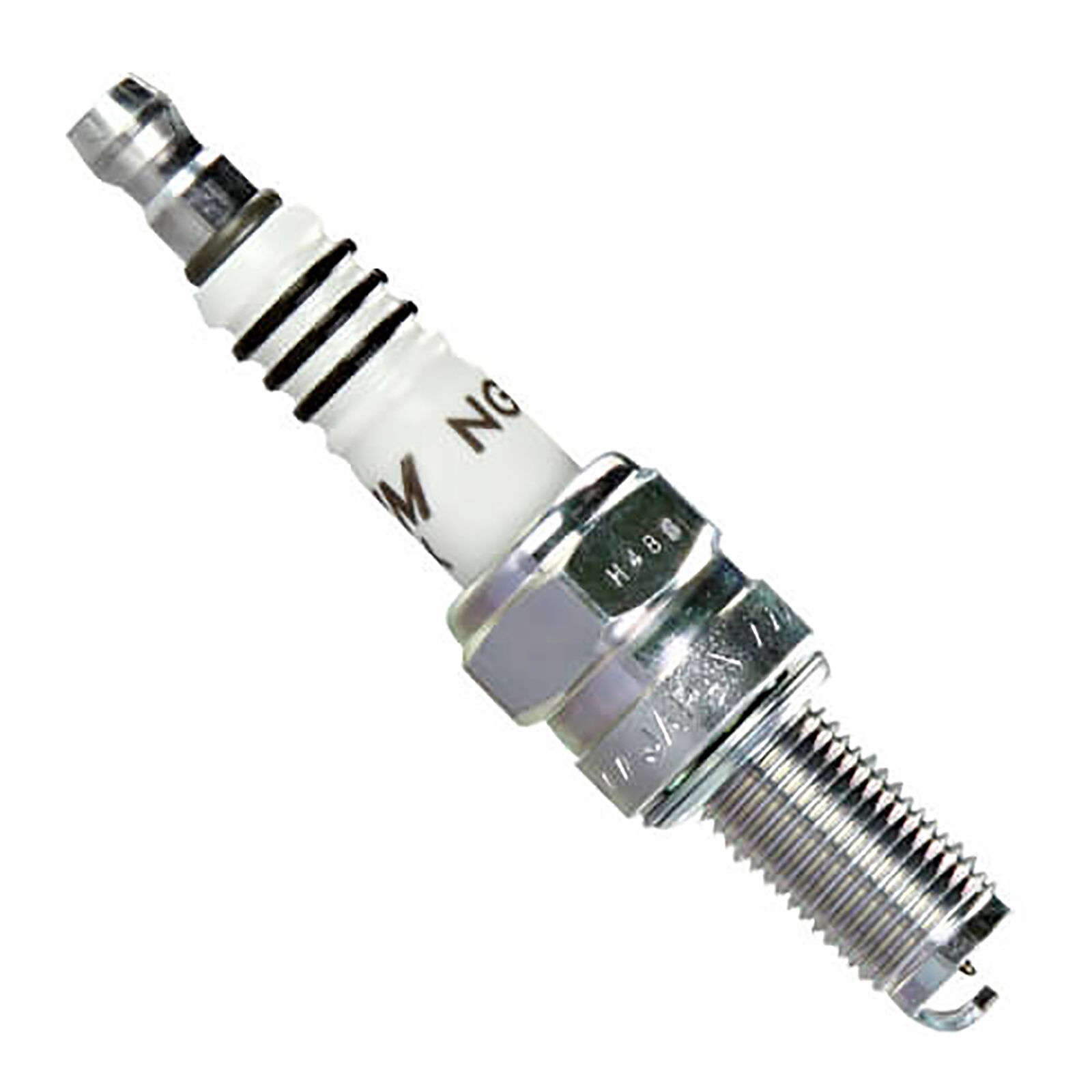

NGK Spark Plug for Yamaha YFZ450R 2X4 Raptor 2009-2024

NGK have over 80 years of experience in spark plug manufacturing and are the world leader in spark plug technology. NGK has an extensive range of spark plugs each with their own unique characteristics specifically engineered to its application and designed to suit a broad range of motorcycles ATVs & UTVs in Australasia. With NGK's dedication to quality outstanding reliability and state of the art manufacturing techniques you can rely on your NGK Spark Plugs.

Don’t just ask for a spark plug insist on NGK.

The improved throttle response superior anti-fouling and high-ignitability make Iridium IX^® ideal for the performance enthusiast. Iridium’s extremely high melting point is perfectly suited to today’s high-temperature engines delivering outstanding acceleration fuel efficiency and durability.

• Fine iridium tip ensures high durability and a consistently stable spark
• Trivalent metal plating for superior anti-corrosion and anti-seizing properties
• Outstanding acceleration high fuel efficiency and durability

Shell

• Thread Size: 10mm
• Thread Pitch: 1.0mm
• Seat Type: Gasket
• Resistor Value: 5K Ohm
• Reach: 19mm (3/4 )
• Hex Size: 16mm (5/8 )
• Terminal Type: Threaded Stud
• Overall Height: ISO
• Gap: 0.8mm (0.031 )

Centre Electrode

• Material: Iridium
• Type: Fine Wire
• Size: 0.6mm
• Projection: Non-Projected

Ground Electrode

• Material: Nickel
• Type: Standard
• Shape: Taper Cut
• Quantity: 1

Specifications

• Heat Range: 8
• Resistor: Yes

Bike Fitment:

• Yamaha YFZ450R 2X4 Raptor 2009
• Yamaha YFZ450R 2X4 Raptor 2010
• Yamaha YFZ450R 2X4 Raptor 2011
• Yamaha YFZ450R 2X4 Raptor 2012
• Yamaha YFZ450R 2X4 Raptor 2013
• Yamaha YFZ450R 2X4 Raptor 2014
• Yamaha YFZ450R 2X4 Raptor 2015
• Yamaha YFZ450R 2X4 Raptor 2016
• Yamaha YFZ450R 2X4 Raptor 2017
• Yamaha YFZ450R 2X4 Raptor 2018
• Yamaha YFZ450R 2X4 Raptor 2019
• Yamaha YFZ450R 2X4 Raptor 2020
• Yamaha YFZ450R 2X4 Raptor 2021
• Yamaha YFZ450R 2X4 Raptor 2022
• Yamaha YFZ450R 2X4 Raptor 2023
• Yamaha YFZ450R 2X4 Raptor 2024
