Rocky Creek Merit Power Socket

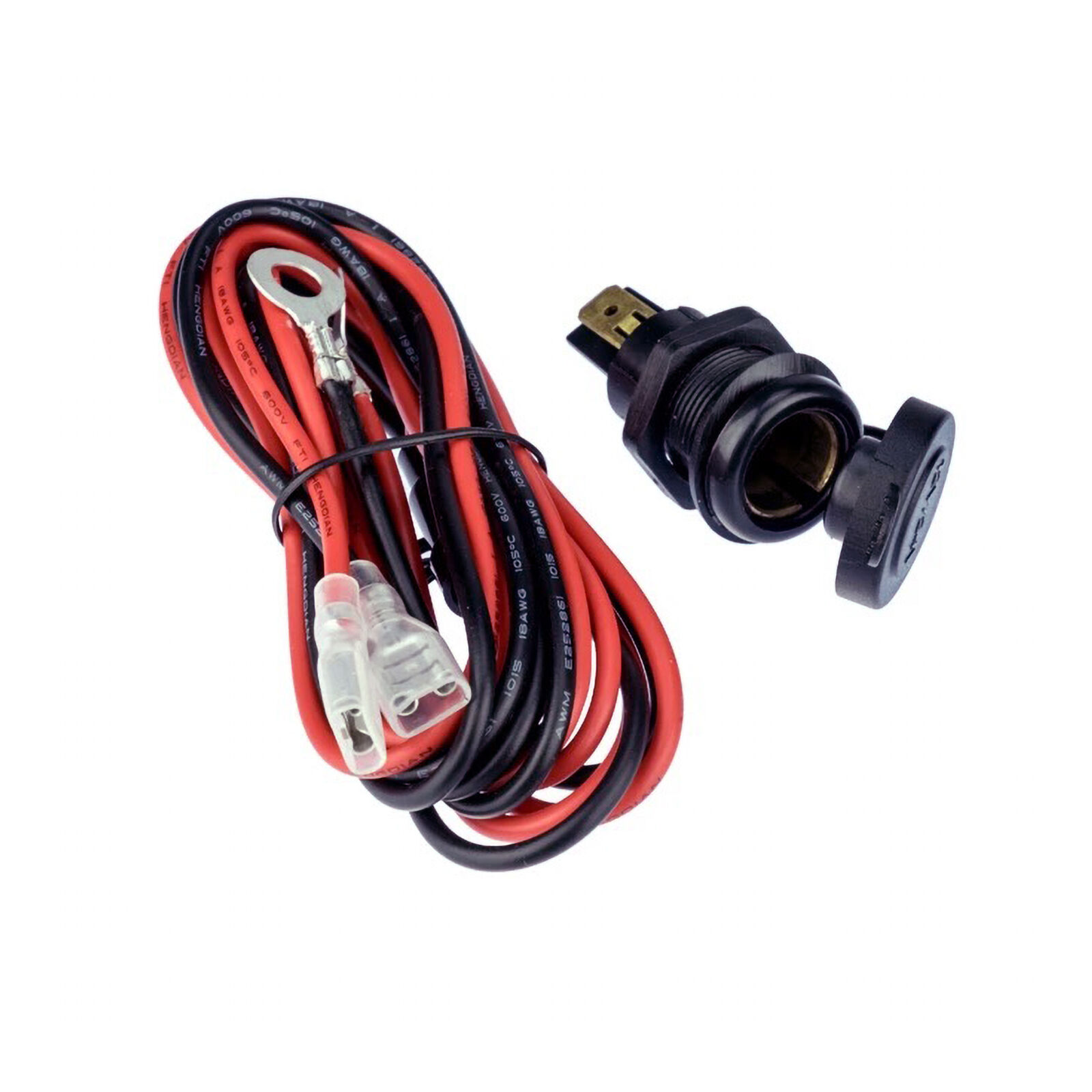

Comes with a 1.5m long power lead with Battery Circles and Blade Connectors. To install attach the power lead to your battery Red to (+) and Black to (-). Next attach the Red wire (+) to the pin closest to the centre of the socket and the Black wire (-) to the pin closest to the edge of the socket (see picture). The socket will handle 12V/120W.

NOTE: Before drilling any holes ensure there is enough space behind the installation point to accommodate the body of the socket.
