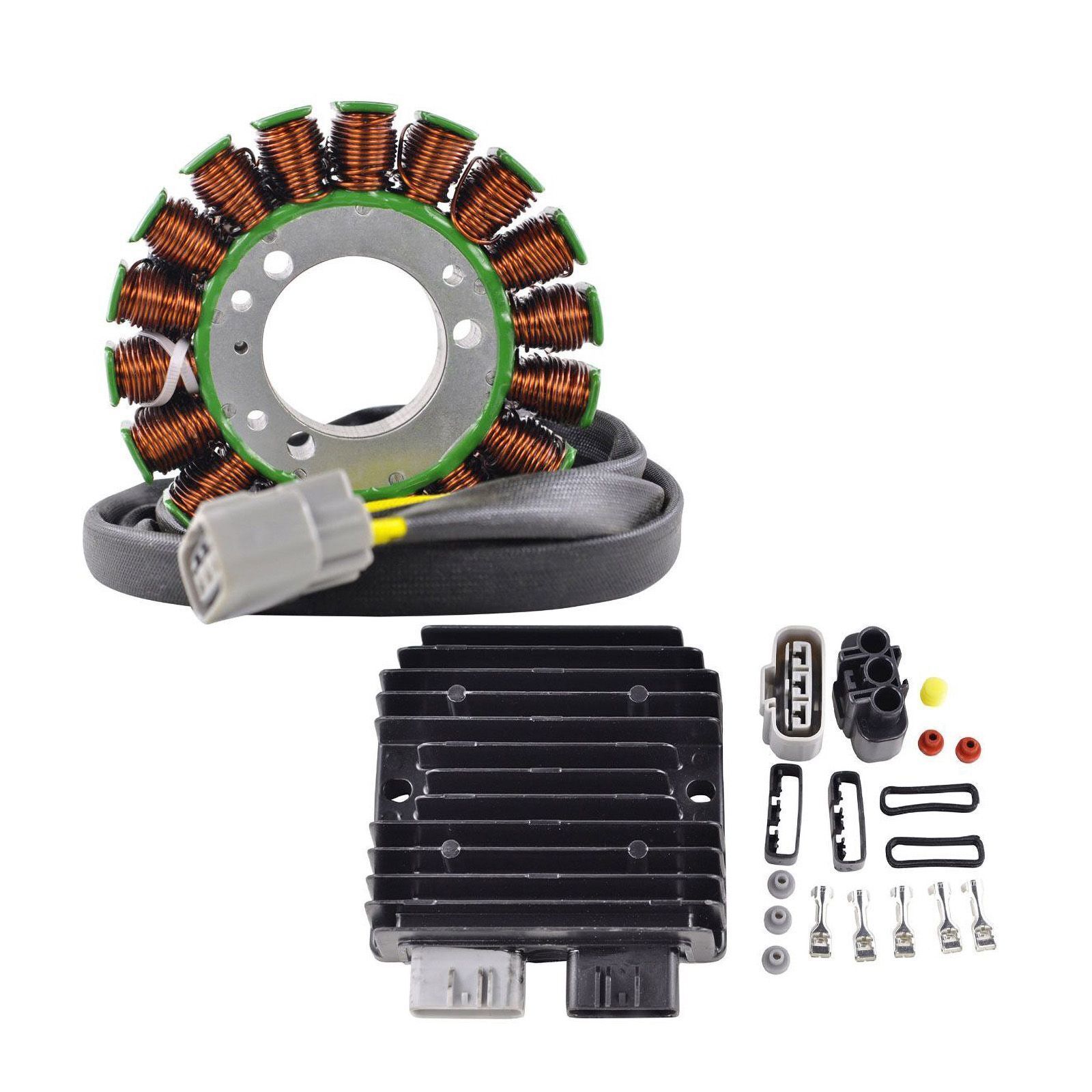

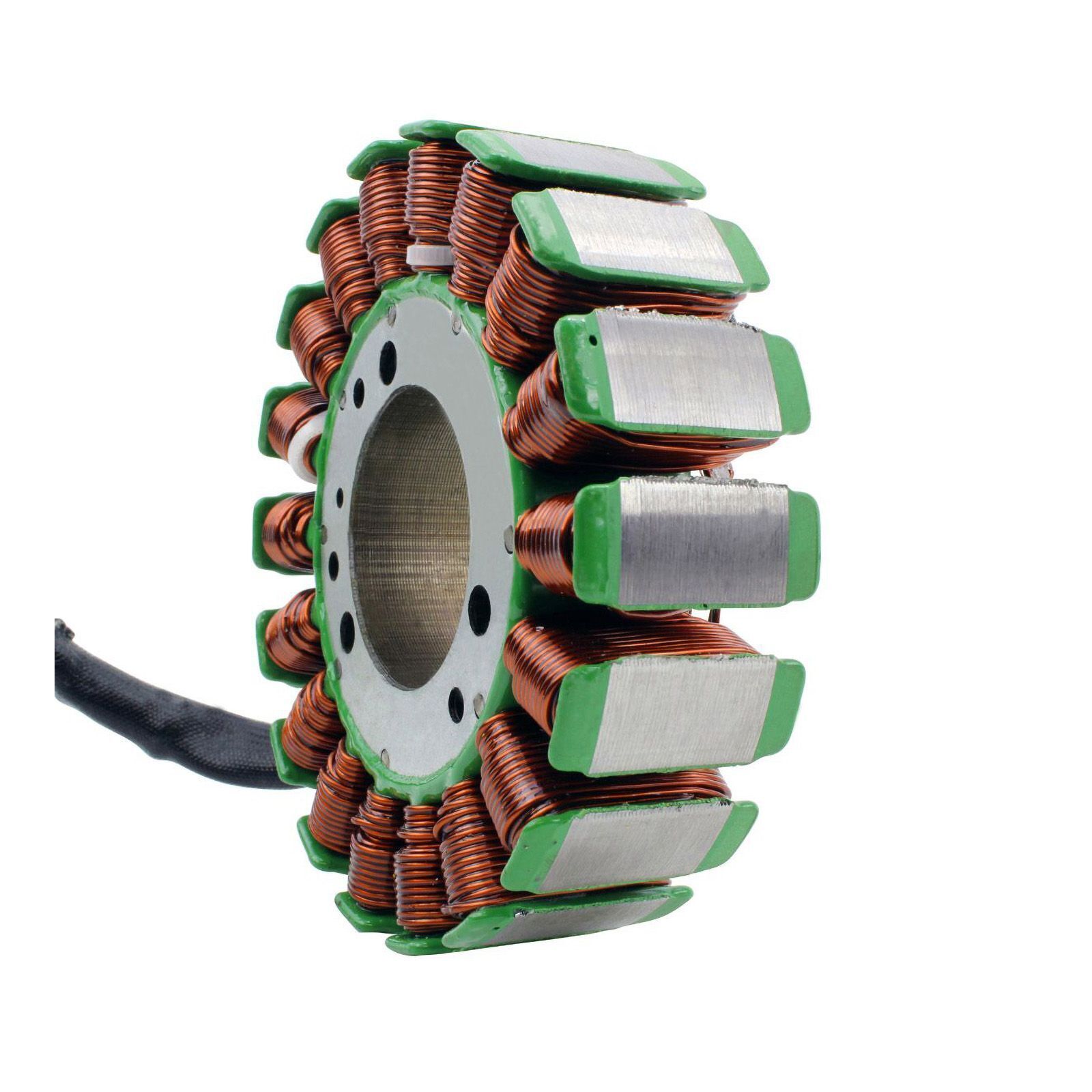

Brand new aftermarket stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

Dimensions:

  • Interior diameter: 54 mm
  • Exterior diameter: 115 mm
  • Thickness: 16 mm
  • Length of wires stator to grommet: 80 mm
  • Length of wires grommet to plug: 1140 mm

Other specifications:

  • Number of wires: 3
  • Number of plugs: 1
  • Number of pins: 3

Wire to wire resistance:

  • Alternator: Black to Black = 0.4 ohms +-20%

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.


Bike Fitment:

  • fits Can-Am Commander 800 DPS 2014
  • fits Can-Am Commander 800 DPS 2015
  • fits Can-Am Commander 800 DPS 2016
  • fits Can-Am Commander 800 DPS 2017
SKU S2-RMS900107068_CA04
Brand RM_Stator
Shipping Weight 0.2500kg
